One-out-two PVC profile production line for livestock breeding

The launch of this production line not only improves the efficiency of water supply systems in the livestock industry but also reduces operating costs. Its high efficiency and reliability make it an ideal choice for livestock farming operations looking to upgrade their water supply systems.

Model:SZ51

Send Inquiry

Product Description

Products DescriptionBasic Information：Raw material: PVC mixed powder.

Process: Raw material loading, extrusion, die forming, traction, cut-to-length cutting, stacking. Product application.

Output: 50-80 kg/h, fluctuating according to material characteristics and product specifications.Power Supply Voltage: 3-phase 380V 50Hz

Voltage Tolerance: 5%/-5%

Frequency: 50Hz ±2%

Total Power: 50kW (production line), 60% actual utilization

Wires/Water Pipes/Cables/Compressed Air: Wires/Cables: From the power supply to control the production line and all cables from the control cabinet to each machine cabinet;

Water Supply: 0.5 cubic meters/hour

Compressed Air: 0.4-0.8 pm

Equipment List

Automatic feeding system1 set

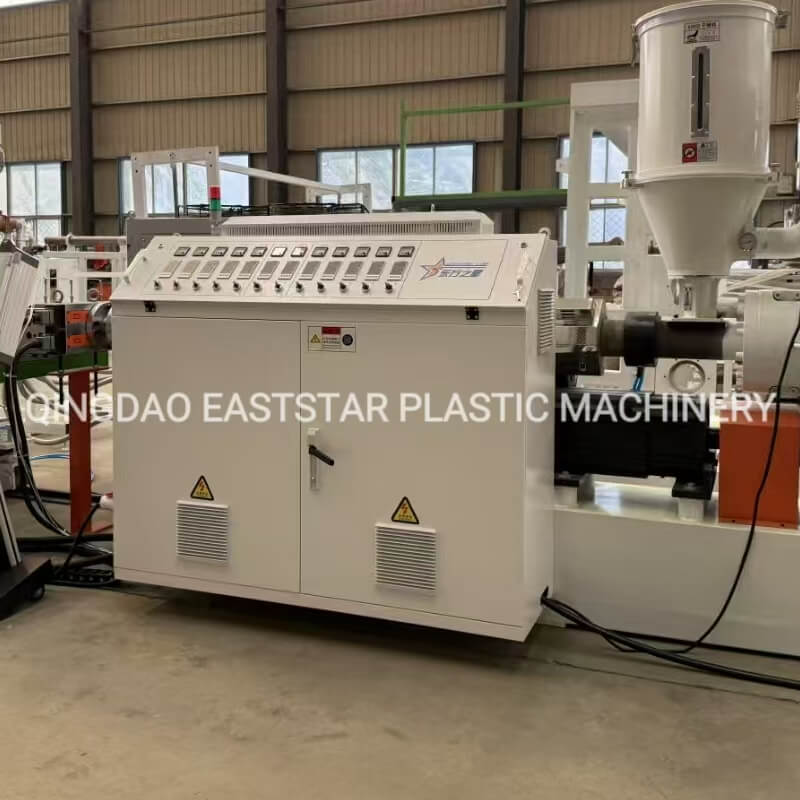

SZ51 twin-screw extruder1 set

Extrusion die (made according to sample)1 set

YF-4m vacuum cooling and shaping platform1 set

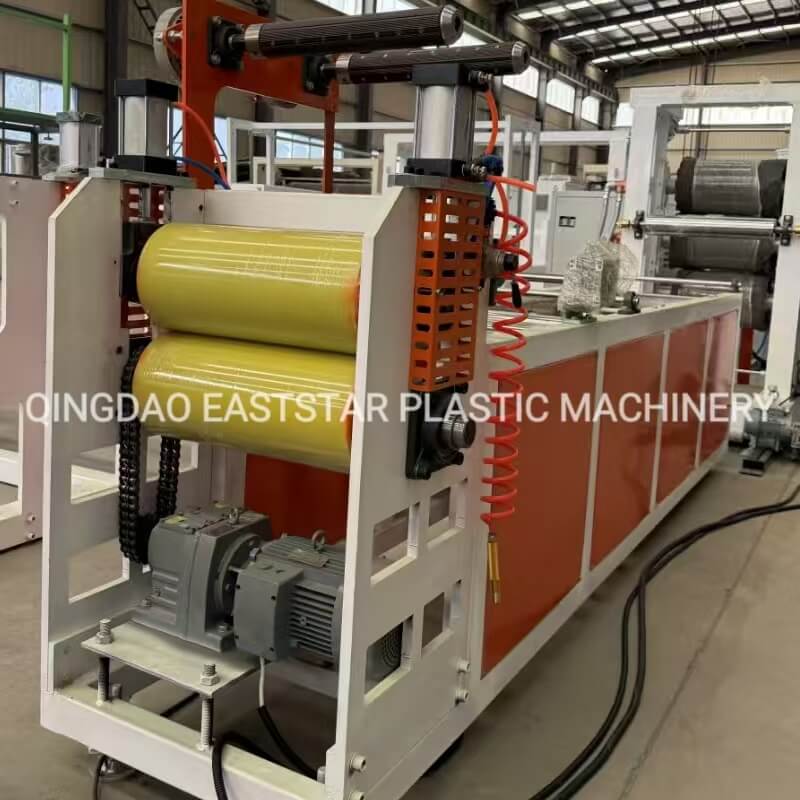

YF-160 tractor1 setCutter1 set

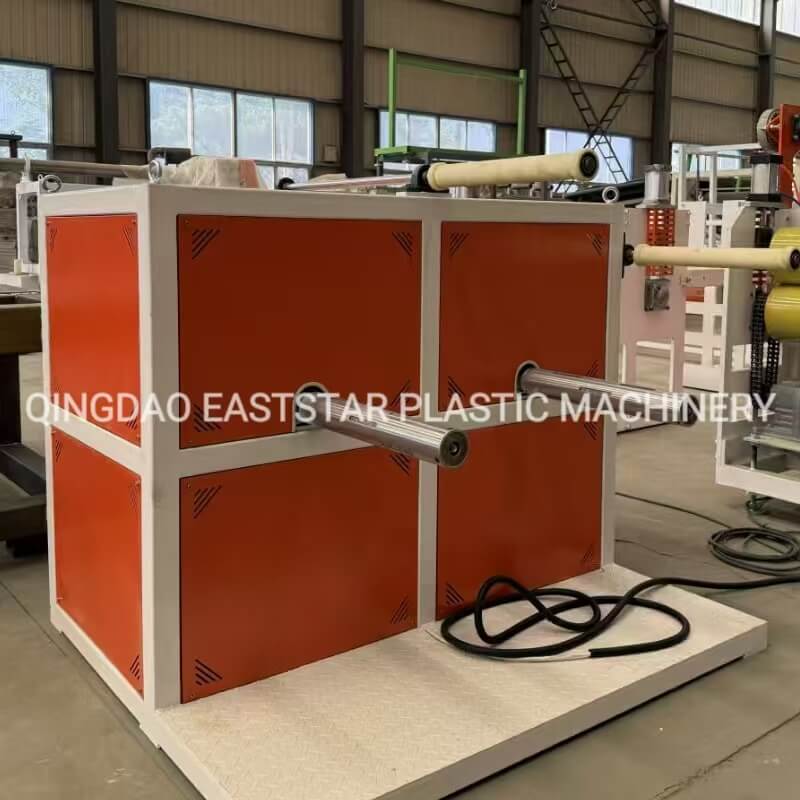

3-4m stacking rack1 set

Remark：The entire line utilizes INVT or VEICHI variable frequency drive systems, Siemens low-voltage electrical equipment, and Omron intelligent temperature controllers.

The reduction gearboxes utilize hardened gear reducers from Jiangyin, the motors are from Shandong Tailida, and the screw and barrels are from Zhoushan.
