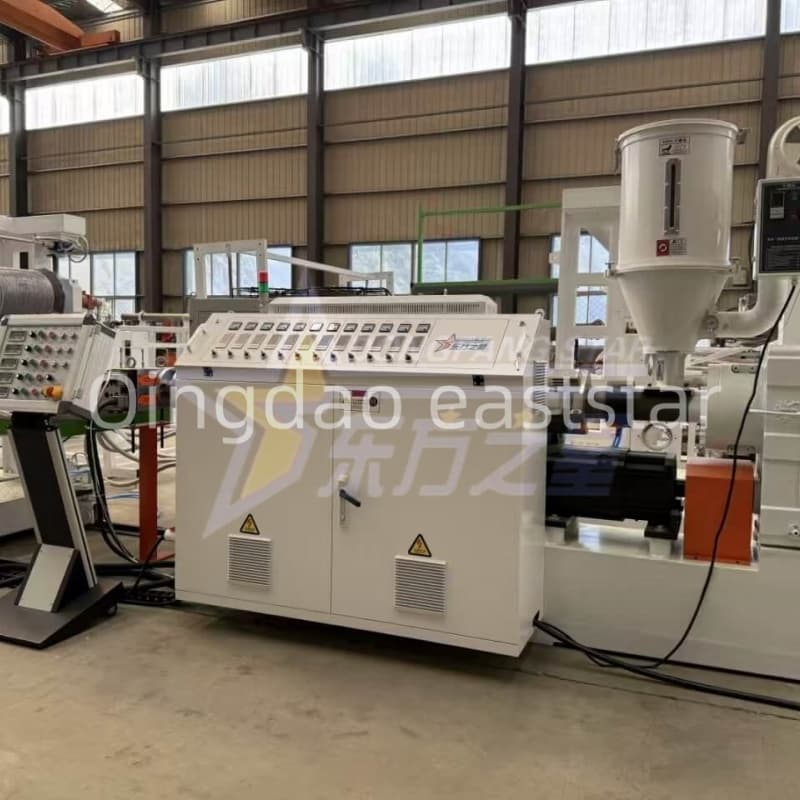

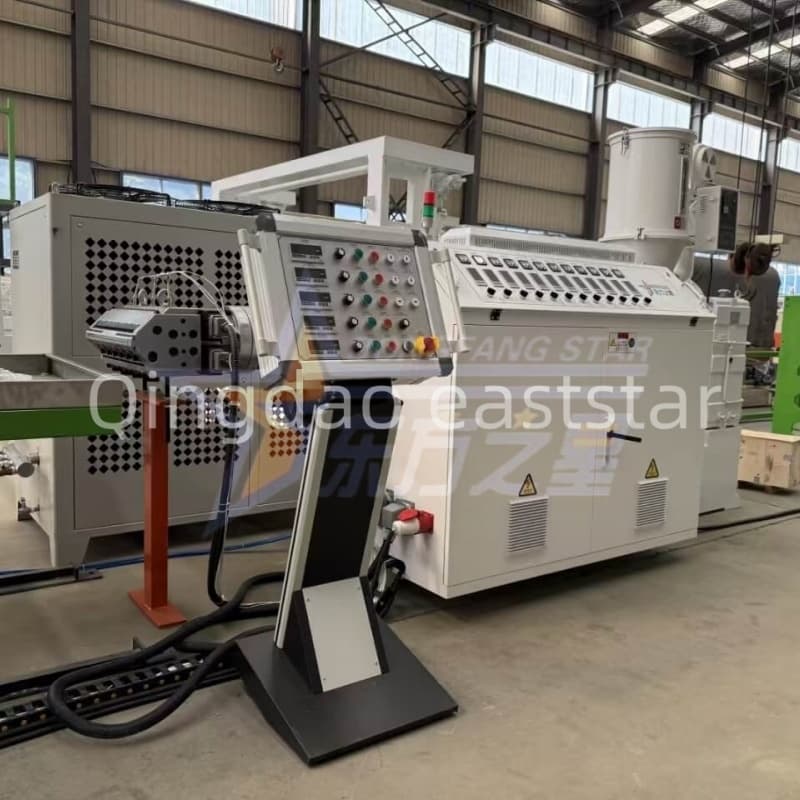

SJ75-300mm Sheet Extrusion Line for TPU, PE, PP & PS

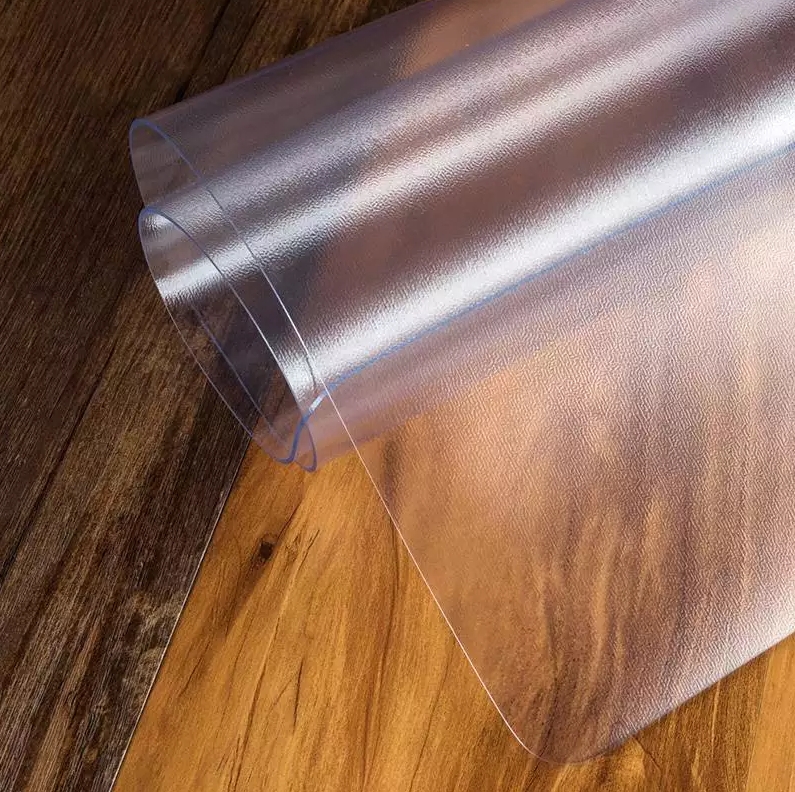

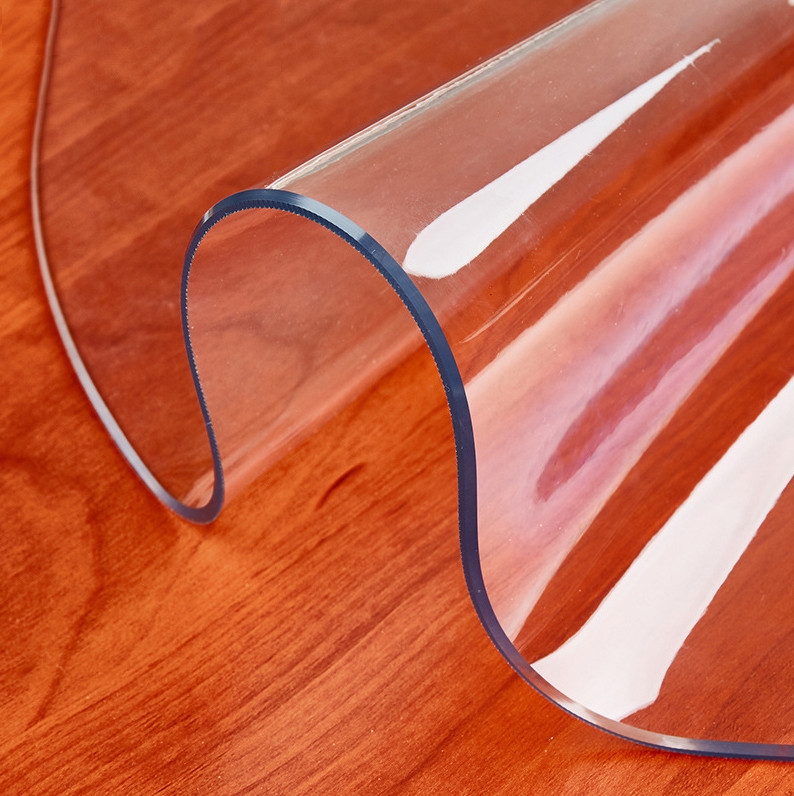

✅ Produces high-quality sheets from TPU, PE, PP, PS (0.8-3mm thick, 280-300mm wide).

✅Output up to 60-100 kg/h with a streamlined 18m floor plan, ideal for R&D and medium-scale production.

✅ Features mirror-finish three-roll calender for excellent surface smoothness and gloss.

✅ Includes laminating unit & dual-station winder, ready for immediate production.

Technical Specifications & Configuration

Core Parameter Table:

Core Component Brands:

Solving Your Core Production Challenges

• Nitrided Screw & Barrel for Demanding Polymers like TPU

The screw and barrel are made from 38CrMoAlA nitriding steel (Hardness ≥740HV/940HV), offering exceptional wear and corrosion resistance. This ensures stable extrusion and long service life, especially for abrasive or sticky materials like TPU.

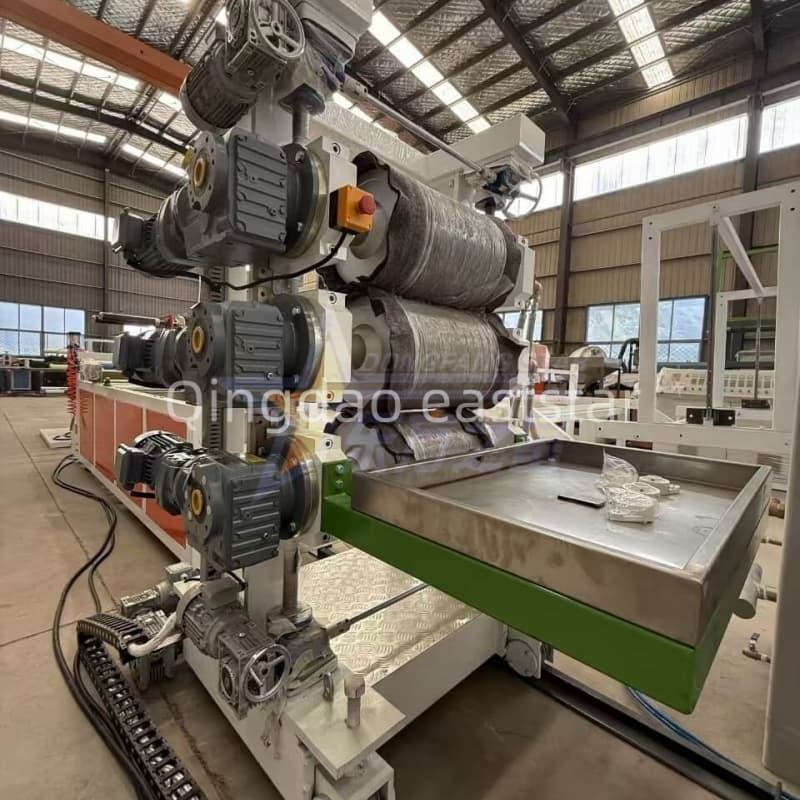

• Independent 3-Roll Calender with Mirror Finish

The 3-roll calender (∮320mm×500mm) features independently controlled, mirror-finished rolls (Hardness RC60-65). With separate temperature and speed control, it provides precise cooling and calendering, resulting in sheets with outstanding flatness, smoothness, and consistent thickness.

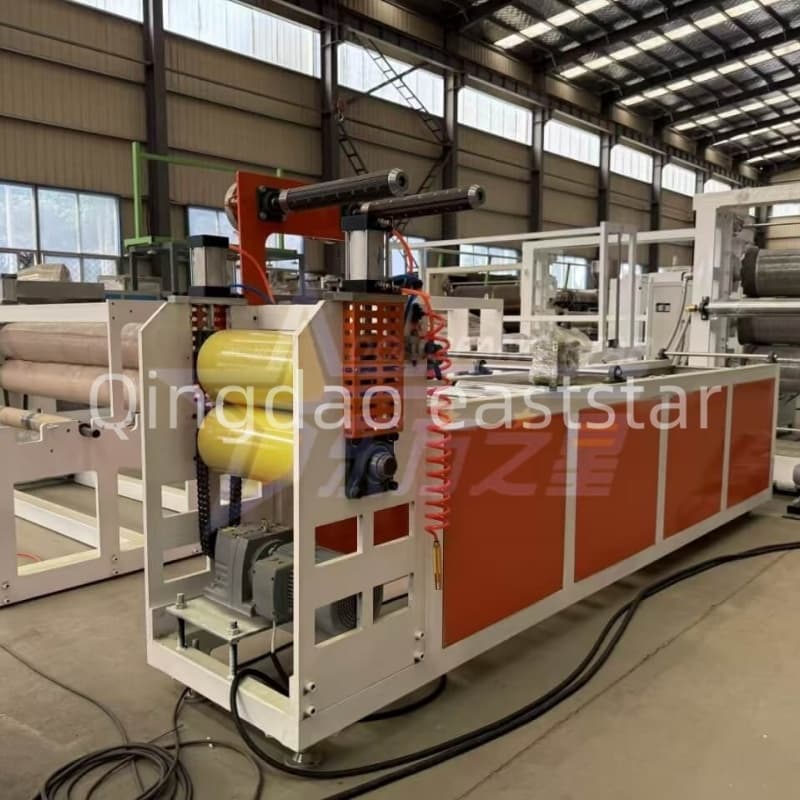

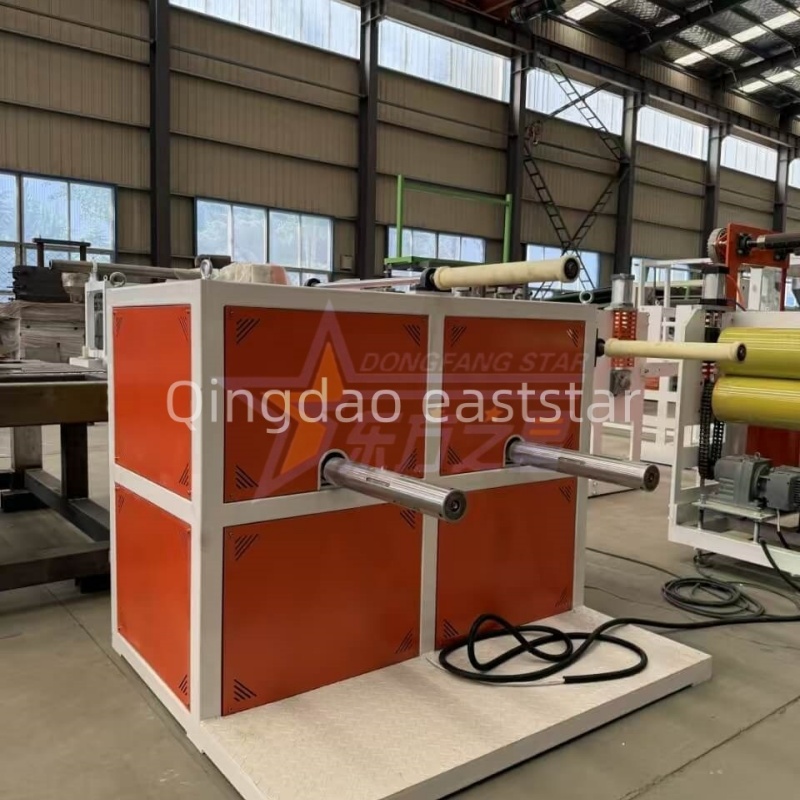

• All-in-One Line with Laminating & Winding for Turnkey Operation

This complete line integrates a laminating unit for protective film application and a dual-station turret winder for continuous, efficient roll changing. The compact design minimizes footprint while the centralized SIEMENS/OMRON control panel simplifies operation and monitoring.

Product Display

Our Quality & Service Commitment

Production & Quality Control: Every machine undergoes rigorous full-load testing before shipment to ensure all parameters meet specifications and operation is smooth.

Service & Warranty:

Warranty: 12 months comprehensive warranty on all parts (excluding man-made damage).

Technical Support: Lifelong technical consultation. On-site installation, commissioning, and operator training available (customer covers travel expenses).

Payment: T/T terms

Frequently Asked Questions (FAQ)

Q: Are you a machinery factory or a trading company?

A: We have our own factory, which means we can strictly guarantee product quality and delivery time, and we don't charge middlemen.

Q: If we have very specific requirements for the production line, can you help me with the design?

A: We provide optimized equipment configurations based on your specific product specifications and production capacity requirements. The operating direction and exterior paint color of the equipment can be customized according to your requirements. Experienced mechanical designers provide customized designs.

Q: Do you provide equipment testing services?

A: Yes, we provide on-machine testing services. An additional testing fee will be charged based on testing costs (electricity, labor, etc.).

Q: How do you ensure the machine runs well in the factory?

A: If you need assistance with installation and staff training, we can send engineers overseas to solve all problems. Commissioning normally takes 7-8 days, excluding travel time. Overseas customers are responsible for the round-trip airfare, wages, accommodation, and safety of the commissioning personnel.

Q: What about the one-year warranty after-sales service?

A: Free replacement of parts within one year (excluding damage caused by human error). Maintenance or replacement of parts after one year will only incur cost charges. Lifetime technical support is provided.

Q: How can I effectively get a quote?

A: Please click the "Send Inquiry" or "Contact Seller" button at the bottom of the page. Leave a message describing the details of your final product (preferably with pictures and dimension drawings), production requirements, etc. We will reply to your inquiry within 12 hours.

Q: How can we visit your company and machines?

A: Our factory is located in Jiaozhou City, Qingdao, Shandong Province, China, with convenient transportation, 18 kilometers from Qingdao Jiaodong International Airport.

Q: What are the payment terms?

A: T/T
