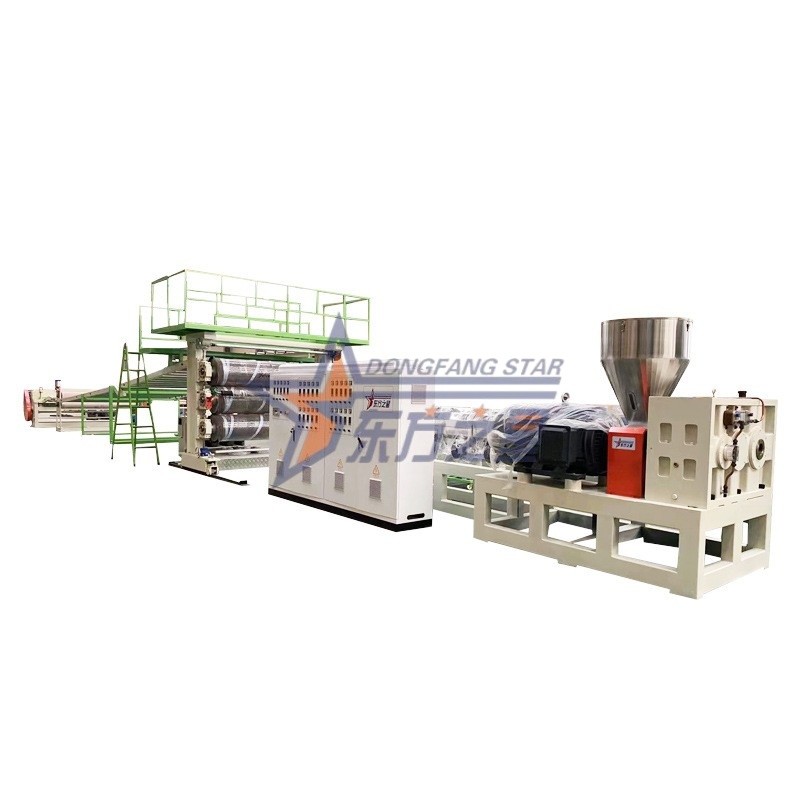

SJ150-HIPS/ABS - 2000mm Wide High-Efficiency Plastic Sheet Extrusion Production Line

✅ High Capacity Design: Output up to 400-600 kg/h, meeting large-scale production needs

✅ Stable Quality Assurance: Key components use international brands such as Siemens, ABB, and Omron

✅ Superior Finished Product Surface: Equipped with a mirror-finish three-roll calender to ensure high-gloss and smooth sheets

✅ Worry-Free Service: Provides on-site installation and commissioning, personnel training, and a 1-year warranty

Technical Parameters and Configuration

Core Parameter Table:

Core Component Brand Showcase:

• Temperature Control System: Omron (Japan)

• Electrical Components: Siemens (Germany)

• Variable Frequency Drive: ABB (Switzerland)

• Gear Reducer: Changzhou Jiuyuan Screw and Barrel: Zhoushan, Zhejiang

• Section Three: How We Solve Your Core Production Pain Points

High-Efficiency Plasticization and Stable Output

35:1 Optimized L/D Ratio Screw for Superior Mixing and Stable Extrusion

Description: The screw is made of 38CrMoALA nitrided steel, deeply nitrided (hardness ≥740HV), wear-resistant and corrosion-resistant. Combined with 8-zone barrel temperature control (±1℃), it ensures uniform plasticization of HIPS/ABS materials, reducing thickness fluctuations from the source and improving yield.

 Precision Molding and Surface Treatment

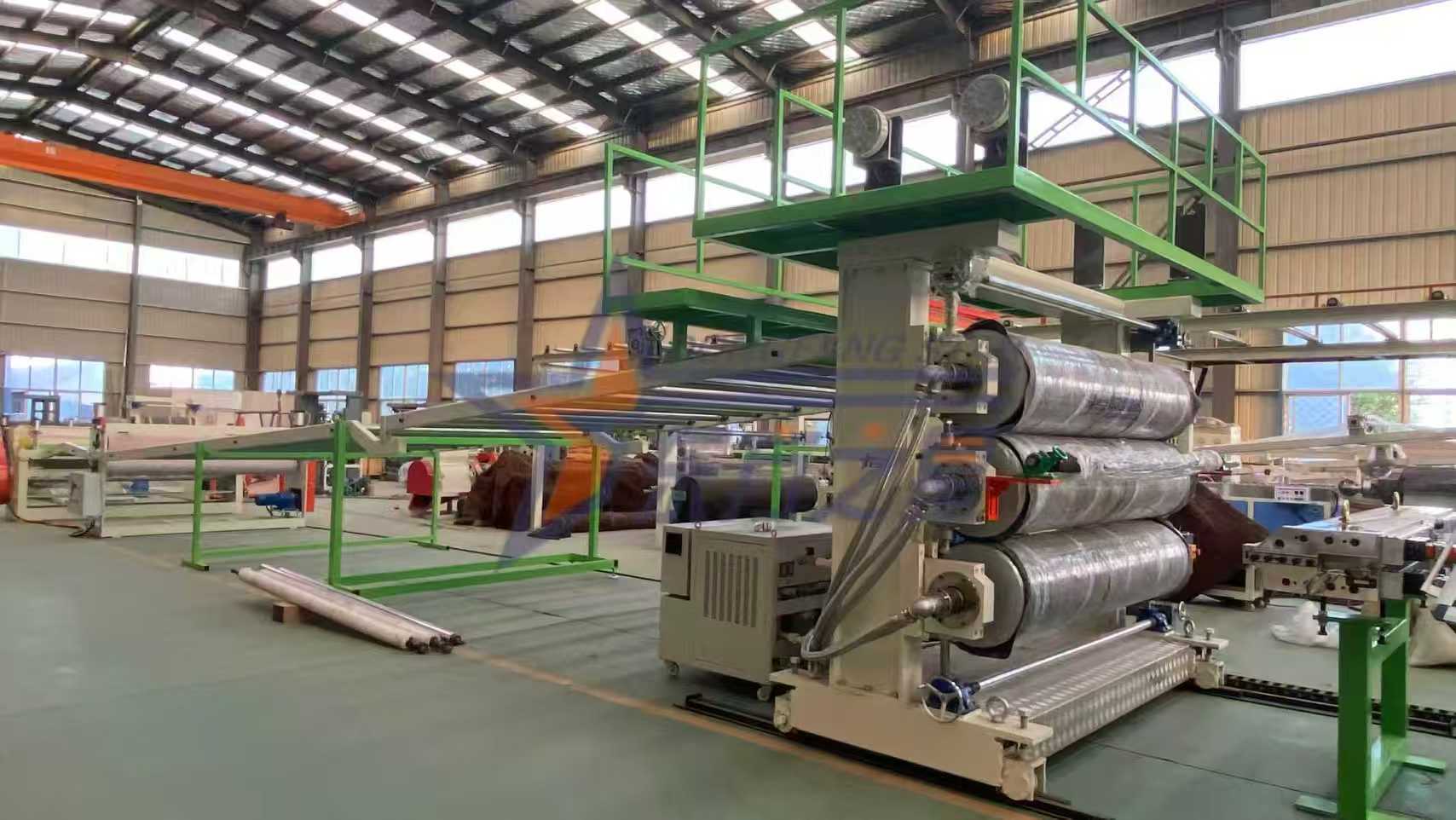

Mirror-finish Three-Roll Calender for Excellent Surface Finish and Smoothness of Sheets

Description: ∮450mm×2200mm large-diameter mirror-finish rollers (hardness RC60-65) with independent temperature control and drive systems. Uniform and constant roller surface temperature allows for rapid shaping and elimination of flow marks, key to producing high-quality appliance casings and advertising boards.

Intelligent Control and Continuous Production

Hydraulic rapid screen change and full-line frequency conversion synchronization ensure uninterrupted and efficient operation.

Description: Equipped with an HW-180 hydraulic screen changer, it allows for rapid screen replacement without stopping the machine, greatly reducing waste and downtime. The entire line uses ABB frequency conversion speed regulation to achieve precise synchronization from calendering and traction to cutting, supporting 24/7 continuous and stable production.

Designed for High-Quality Sheets

• Appliance Housings (Refrigerator liners, air conditioner panels, etc.)

• Advertising Printing Sheets (Way signs, interior decorations, machinery signs, etc.)

• Luggage Sheets (Various suitcases, trolley cases, casual bags, etc.)

• Automotive Sheets (Car roofs, door panels, seat backs, car bodies, etc.)

Material Compatibility: This production line is specifically optimized for HIPS (High Impact Polystyrene) and ABS (Acrylonitrile Butadiene Styrene), perfectly adapting to virgin granules and high-quality recycled and crushed materials.

Customer Testimonials and Return on Investment

Case Study

Global Sales Network: Our equipment has been successfully exported to Southeast Asia, the Middle East, South America, and other regions, possessing extensive experience in international transportation, installation, and after-sales service.

Our Quality Commitment

Warranty Policy: 12-month quality guarantee from the date of delivery, free replacement of core components (excluding damage caused by human error).

Technical Support: Lifetime technical consultation provided. Engineers will be dispatched to guide installation, commissioning, and operation training (travel expenses borne by the customer).

Delivery Cycle: Shipment within 45-50 working days after order confirmation (FOB Qingdao).

Payment Method: T/T.

 Frequently Asked Questions (FAQ)

1. Are you a factory or a trading company?

We are a manufacturer with our own factory, enabling us to strictly control product quality, cost, and delivery time, without any intermediaries.

2. Can you customize according to our special requirements?

Yes. We provide optimized configurations based on your product specifications and production capacity needs. The equipment's operating direction and exterior color can be customized, with design solutions provided by experienced mechanical engineers.

3. Do you provide trial operation services?

Yes, we provide factory trial operation services. A trial operation fee will be charged based on material, water, electricity, and labor costs.

4. How do you guarantee the equipment will operate well in your overseas factory?

If assistance is needed, we will send engineers to your factory for installation, commissioning, and personnel training, which typically takes 7-8 working days (excluding travel). Overseas clients are responsible for the engineer's round-trip airfare, local wages, accommodation, and safety.

5. What about after-warranty service?

After the warranty period, we provide lifetime technical support. Repairs or replacement parts will only incur cost charges.

6. How can I get an accurate quote?

Please click the "Send Inquiry" button on the page and provide as many details as possible about the final product (pictures, drawings), raw materials, and production capacity requirements. We will provide you with a detailed solution and quote within 12 hours.
