Qingdao Eaststar --Customizable PC/PS/ABS Lamp Cover Production Line Solutions

In the lighting field, making lamp tube covers that hold up well, let light through clearly, and stay exactly the right size turns out to be a big hurdle in manufacturing. Qingdao EASTSTAR runs a dedicated line --PC/PS/ ABS Lamp tube cover production line, it handles all sorts of plastic materials pretty smoothly. That includes polycarbonate, polystyrene, and the ABS copolymer, leading to profiles that perform steadily and come out with top-notch quality.

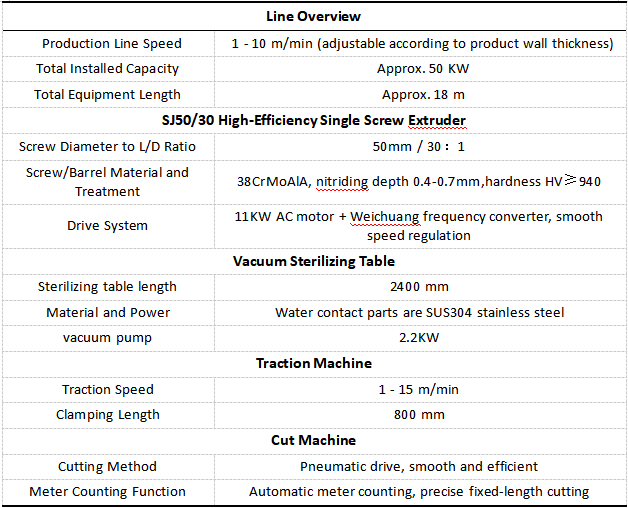

Basic Equipment Information:

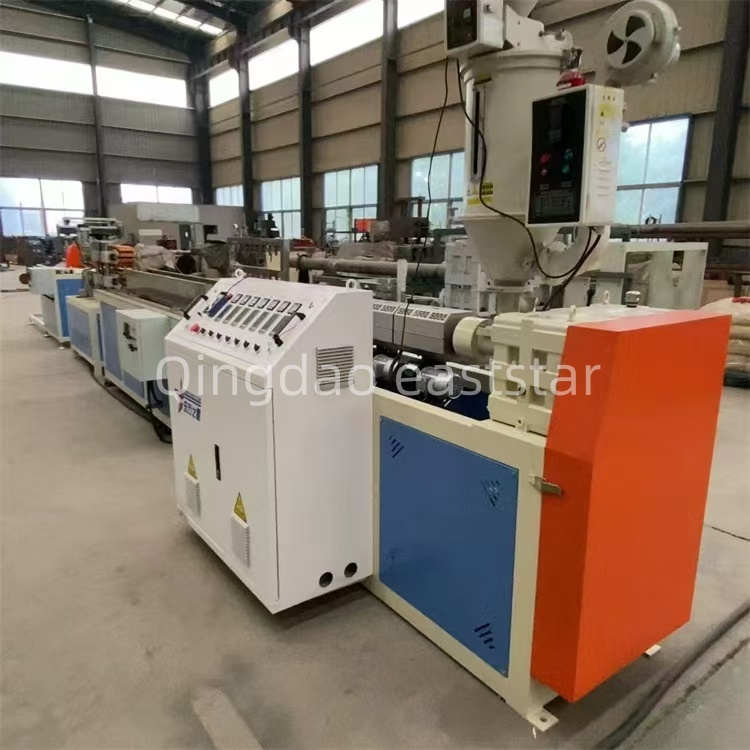

The setup for this lamp tube cover production line centers around some key equipment details. At the heart sits the SJ50/30 single-screw extruder. It features a 50mm screw with a 30 to 1 length to diameter ratio. Both the screw and barrel come from nitrided 38CrMoAlA steel, which helps melt materials completely, keeps things even, and delivers steady output even for tough stuff like PC, PS, and ABS. Lamp tube cover production line pairs an 11 kW AC motor with a Weichuang frequency converter, so speed stays under precise control. Plus, an automatic vacuum feeder and dehumidifier dryer takes care of moisture in raw materials like PC and ABS, making sure the melt stays high quality for the extrusion process. The whole line gets central control through Siemens low-voltage parts and Omron temperature controllers, which keeps everything running reliably.

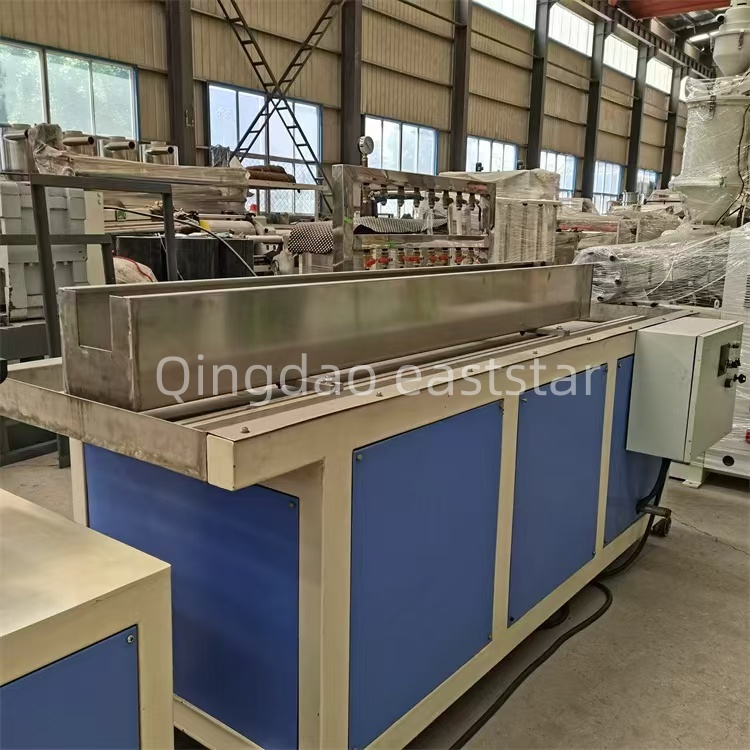

The lamp tube cover production line works with several dies at once. That lets makers switch up shapes for profiles without changing the whole setup. They design custom extrusion dies along with a vacuum forming platform to shape things just right. The platform stretches 2400mm in stainless steel, powered by a 2.2 kW vacuum pump and a 0.75 kW water pump. All that ensures the lampshade products hold their dimensions, stay stable, and finish with a nice glossy look.

This lamp tube cover production line produces protective covers for lamp tubes that have even thickness, smooth light passage, no bubbles inside, and a high shine overall. It keeps lamp tube covers forming consistent, works well for big production runs, and pairs up with different molds easily. In the end, it gives customers solid options that adapt to their needs.

Finished lamp tube covers:

Contact Qingdao EASTSTAR now for the latest quote!
