Professional PVC Stone Plastic Flooring Production Line Provides Complete Solutions for the Building Decoration Industry

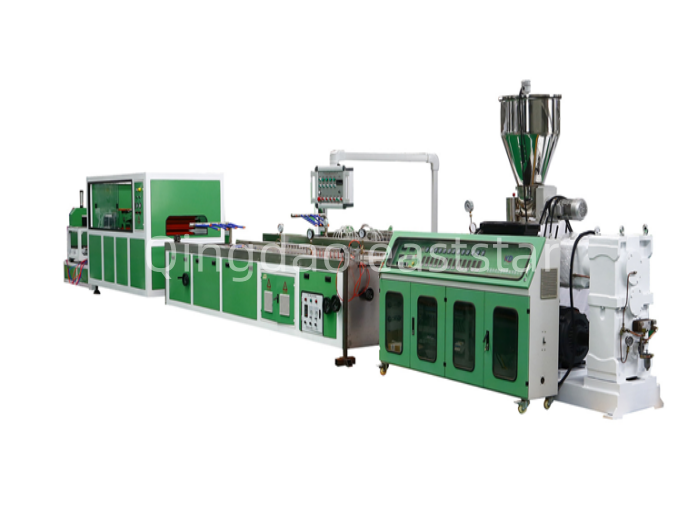

The PVC Stone Plastic Flooring Production Line Operates Stably, Producing High-Quality Flooring Profiles

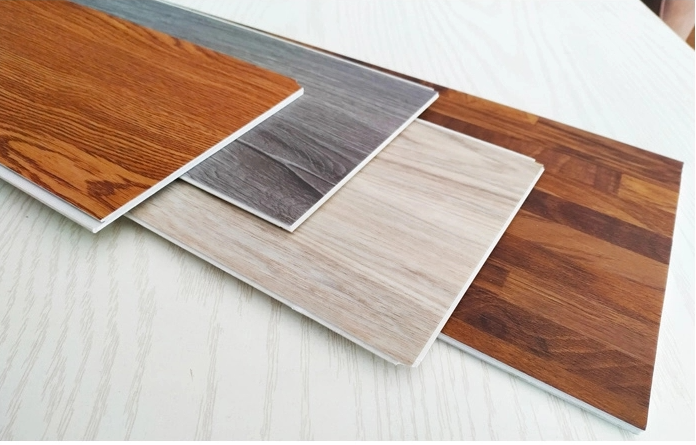

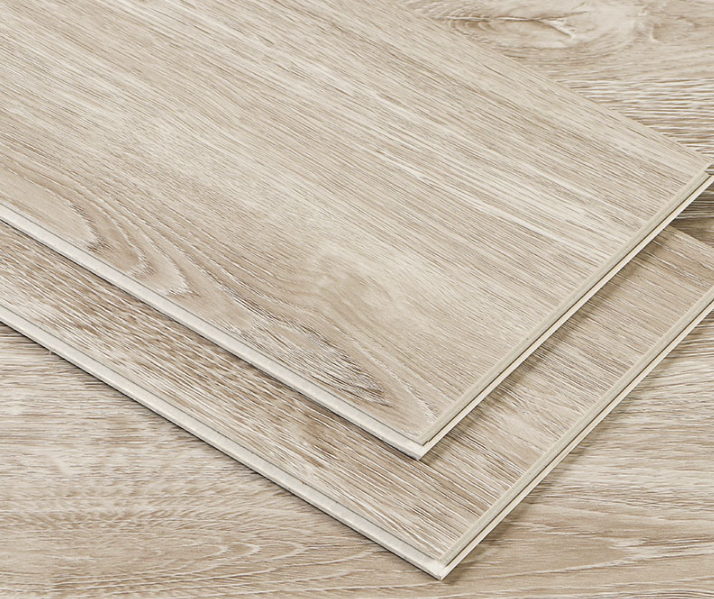

Our mature stone plastic flooring equipment is specifically designed for producing various specifications of stone plastic flooring and profiles. The equipment uses an SZ-65/132 conical twin-screw extruder as its core, equipped with precision molds and a vacuum shaping platform, capable of stably producing flooring products in various specifications such as 159mm and 189mm. This complete stone plastic flooring production line provides reliable production equipment support for the building decoration industry.

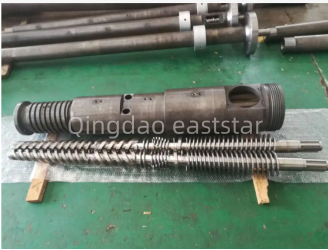

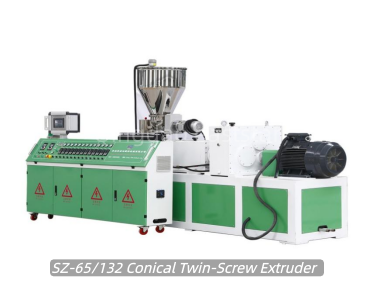

The core extrusion system of this PVC stone plastic flooring production line adopts a conical twin-screw design with screw diameters of 65/132mm, equipped with a 37KW main motor and an ABB variable frequency speed control system. The extruder screw and barrel are nitrided with 38CrMoAIA, with a nitriding layer depth of 0.4-0.7mm and hardness reaching HV740 and HV940 respectively, ensuring the wear resistance and stability of the equipment when processing high-filler raw materials. The heating system of the PVC stone-plastic flooring equipment uses cast aluminum heating coils with a total power of 24KW, coupled with centrifugal fan cooling, to achieve precise temperature control.

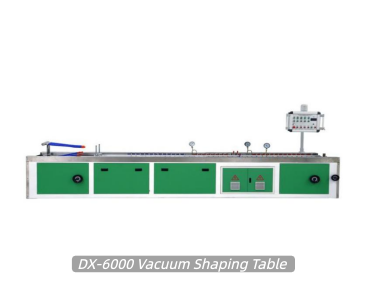

The vacuum forming platform of the PVC stone-plastic flooring production line adopts a 6000mm long stainless steel structure, equipped with a 5.5KW vacuum pump and a 2.2KW water pump to ensure stable product forming. The traction cutting integrated machine adopts a dual-track traction method, equipped with silicone traction blocks, with an effective track length of 2100mm and a traction speed of 0.5-6m/min. The stone-plastic flooring production line is also equipped with a 3000mm stainless steel unloading device to realize automated production processes. These professional configurations ensure that the products produced by the PVC flooring equipment have precise dimensions and excellent surface quality.

The entire PVC stone plastic flooring production line is also equipped with SHR-Z300/600 high and low mixing units. The hot mixer has a volume of 300L and is equipped with a 55KW motor and ABB frequency conversion speed regulation. The cold mixer has a volume of 600L and is equipped with an 11KW motor. The production line also includes an LM-1000 sander and a BF350B-PUR-IV coating machine. The sander has a maximum processing width of 1000mm, and the coating machine has a maximum processing film width of 350mm, covering the complete production process from raw material processing to surface decoration.

We provide comprehensive technical support and service guarantees for PVC stone plastic flooring equipment. The coating machine adopts a professional PUR glue melting and supply system, equipped with three-sided preheating, air shaft, electromagnetic brake system, and photoelectric correction system, achieving high-quality decorative film coating. The sander is equipped with a 22KW motor for the first sanding frame and an 11KW motor for the second sanding frame, with sanding belt linear speeds reaching 20m/s and 18m/s respectively, ensuring optimal floor surface treatment results.

This PVC stone plastic flooring production line features a modular design, simplifying operation and maintenance, and can meet the production needs of different customers. We provide full-process services from equipment installation and commissioning to operation training to ensure customers can fully utilize the equipment's performance.
