Professional PVC Steel Wire Reinforced Hose Production Line Provides Mature Solutions for Industrial Hose Manufacturing

We continuously provide the industrial hose industry with professional PVC steel wire reinforced hose production line solutions. This mature equipment is specifically designed for producing steel wire reinforced PVC hose products. The PVC steel wire reinforced hose equipment uses an SJ-90 single-screw extruder as its core, equipped with a steel wire winding molding machine and a coating die, enabling stable production of reinforced hoses in various specifications. This PVC steel wire reinforced hose production line, proven in the market for a long time, continues to provide reliable hose production equipment for the industrial sector.

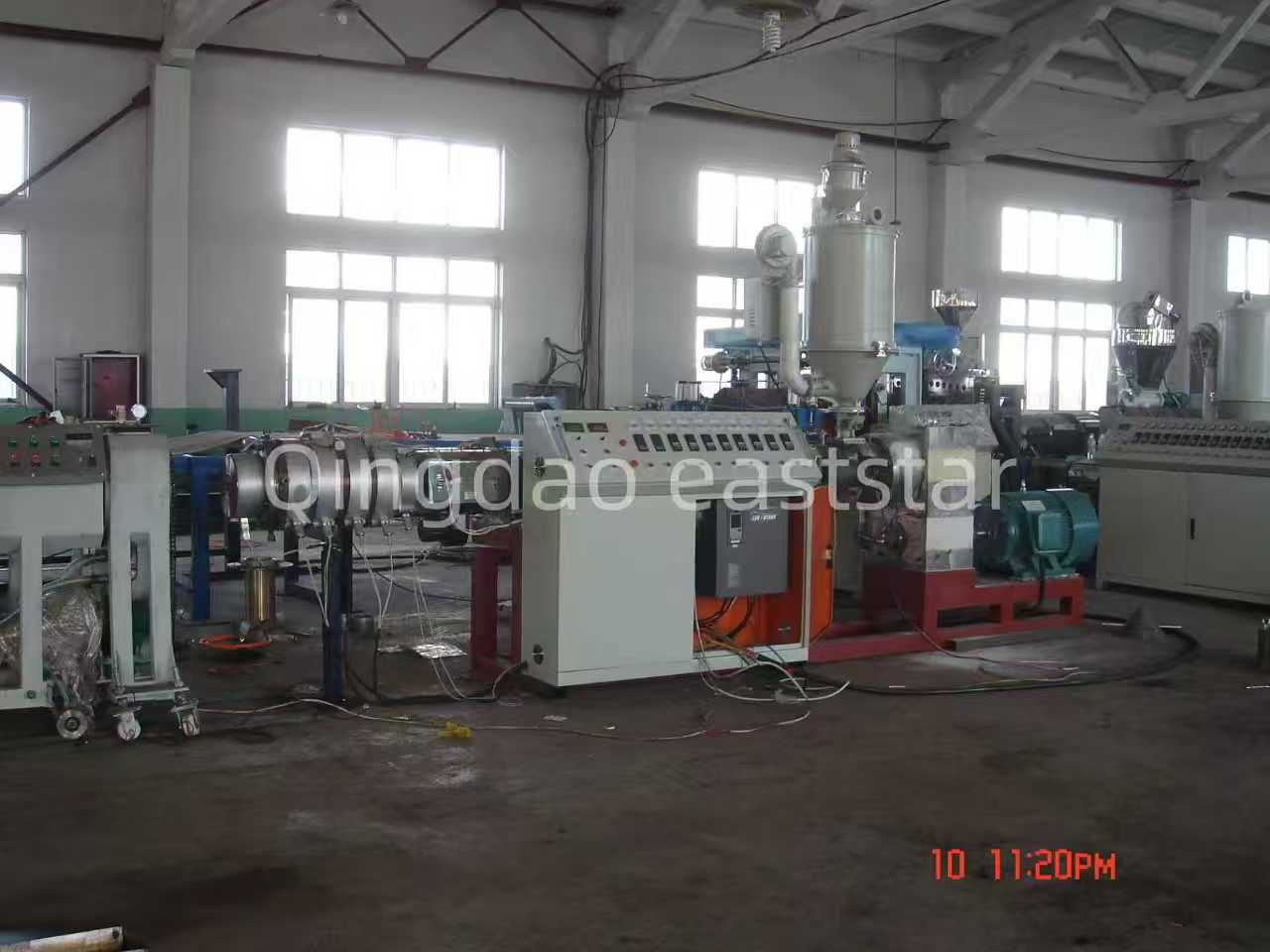

The core extrusion system of this PVC steel wire reinforced hose production line adopts an optimized screw design with a 90mm diameter and a length-to-diameter ratio of 28:1, specifically optimized for the characteristics of PVC raw materials. The extruder is equipped with a 37KW drive motor, achieving precise speed regulation via an ABB frequency converter, with a speed range of 15-50 r/min. The screw and barrel of the PVC steel wire reinforced hose equipment are made of 38CrMoAL nitrided steel with a nitriding depth of 0.5-0.7mm and hardness reaching HV950-1050 and HV940 respectively, ensuring the wear resistance and stability of the equipment during long-term operation.

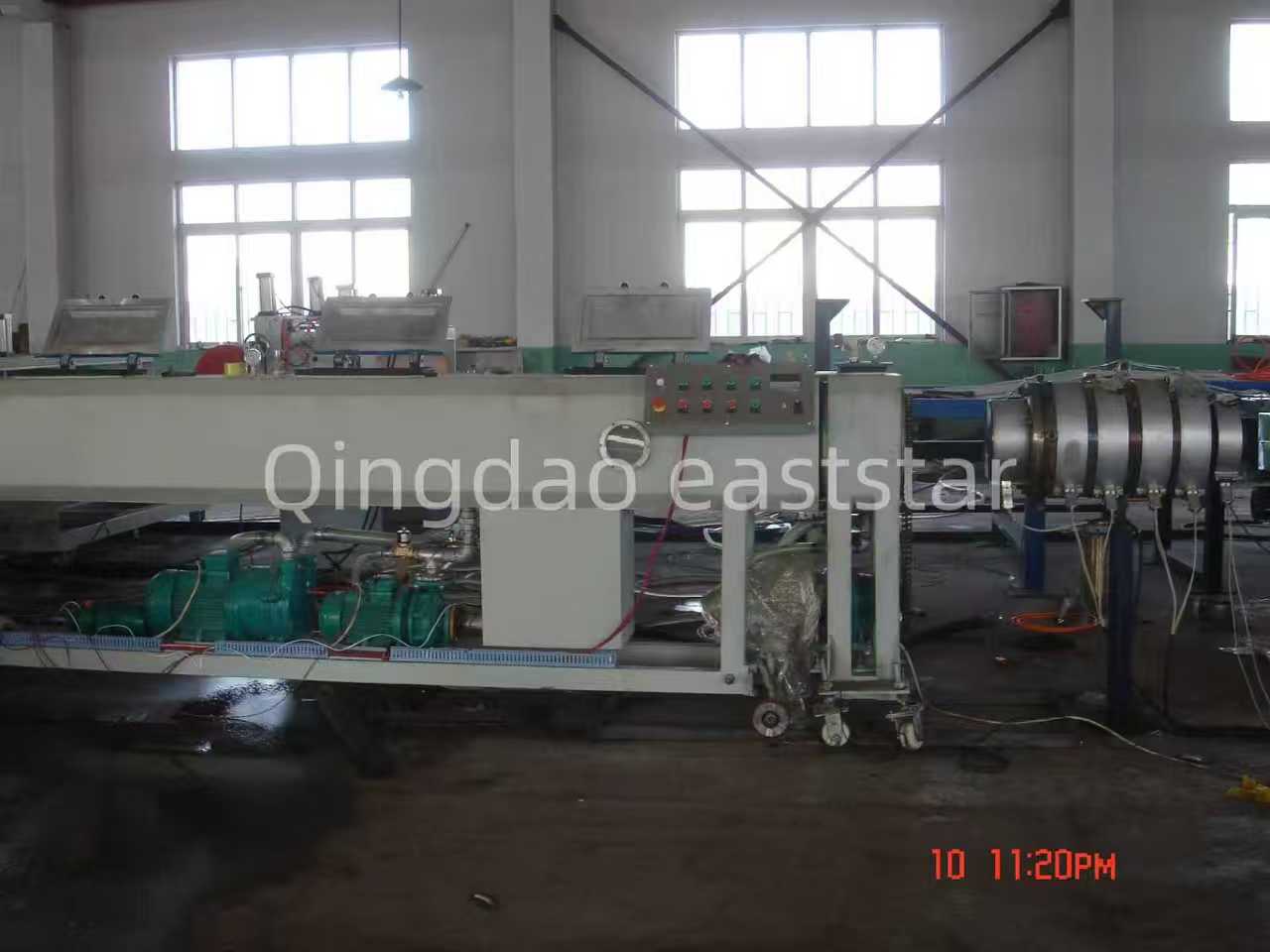

The steel wire winding system of the PVC steel wire reinforced hose production line adopts a central shaft winding method, equipped with a 3KW motor to achieve precise steel wire winding. The coating mold is forged from high-quality 45 steel and equipped with a quick-change heating coil, capable of producing hose products of various specifications such as 36, 41, and 51. The cooling water tank is made of 4-meter-long stainless steel and equipped with a 2.2KW water pump to ensure sufficient cooling and shaping of the products. These professional configurations ensure that the products produced by the PVC steel wire reinforced hose production line have a uniform steel wire reinforcement structure and stable dimensional accuracy.

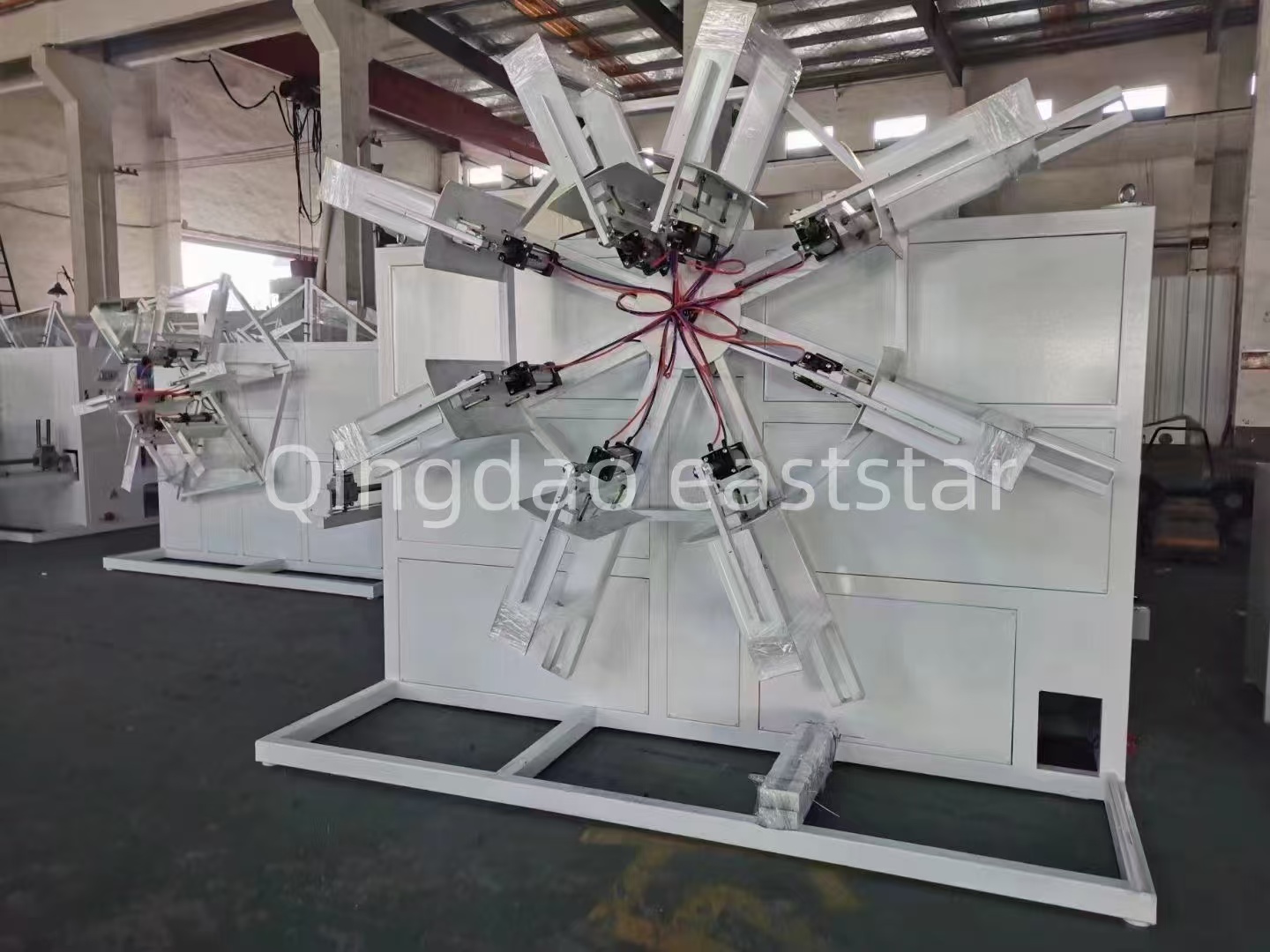

The entire PVC steel wire reinforced hose equipment also includes a 1000mm traction machine and a dual-station winding system. The traction machine is equipped with two tracks, achieving smooth traction through a 2.2KW motor and frequency converter speed regulation. The winding machine adopts a dual-station design, equipped with a 16N torque motor and a wire guide, with a winding inner diameter range of 400-650mm. The electrical control system of the PVC steel wire reinforced hose production line uses high-quality components such as Omron temperature controllers and Siemens contactors to ensure reliable equipment operation.

We have equipped the PVC steel wire reinforced hose equipment with a complete control system to ensure the stability of the production process. The equipment center height is 1000mm, meeting ergonomic requirements for easy operation and maintenance. The gearbox adopts a special structure for hard-tooth surface molding machines, and the gear shaft material is 20CrNi2MoAR vacuum degassed refined gear steel, treated with carburizing and grinding processes, featuring low noise and high torque.

This PVC steel wire reinforced hose production line, with its mature technology and stable performance, continuously provides reliable support to industrial hose manufacturers. The equipment is easy to operate and maintain, boasts high production efficiency, and can meet the diverse needs of different customers for hose products. We provide comprehensive technical services for PVC steel wire reinforced hose production lines, including installation guidance, operation training, and after-sales support, ensuring customers can fully utilize the equipment's performance.
