From "Single-Function Specialization" to "Multi-Functional Versatility": PVC Soft Door Curtain Manufacturing Equipment Enters a New Phase of Flexible Production

As industries such as cold chain logistics, food processing, clean workshops, and chemical warehousing continue to expand rapidly, the market demand for PVC soft door curtains — an efficient partition and energy-saving insulation material — has been rising steadily. At the same time, the diversification of downstream application scenarios (e.g., transparent protection, color-coded zoning, striped warning signs) has imposed more detailed, multi-layered requirements on the specifications, surface effects, and physical properties of door curtain products.

Against this backdrop, the upstream manufacturing equipment industry is undergoing a technological shift from "rigid dedicated lines" to "flexible integrated systems." The new generation of PVC soft door curtain production lines, centered around three-roller calendering units , is becoming a market focal point due to their multi-product adaptability and cost-control advantages.

I. Technical Architecture Deconstruction: Five Core Modules Determine Final Product Quality

Modern PVC soft door curtain production equipment is not a single-function extruder, but an integrated unit comprising precision machinery, electrical control, and thermal exchange systems. The key components and their functions are analyzed as follows:

Industry Knowledge Supplement: The key to door curtain transparency lies not only in the raw material formulation, but also in roller surface temperature and cooling path control. Excessively rapid cooling prevents full molecular chain relaxation, causing whitening; excessively slow cooling leads to adhesion and deformation.

II. Product Capability Grading: Different Equipment Tiers Meet Diverse Needs

Based on current mainstream configurations, PVC soft door curtain production lines can be divided into three technical tiers, corresponding to different scales and target markets:

Among these, the Standard Multi-Function type has become a procurement hotspot in the past two years due to its extremely high cost-performance ratio . A typical configuration includes:

• Extruder Main Unit: SJ-90 or SJ-120 single-screw extruder
• Die: Adjustable T-shaped flexible die

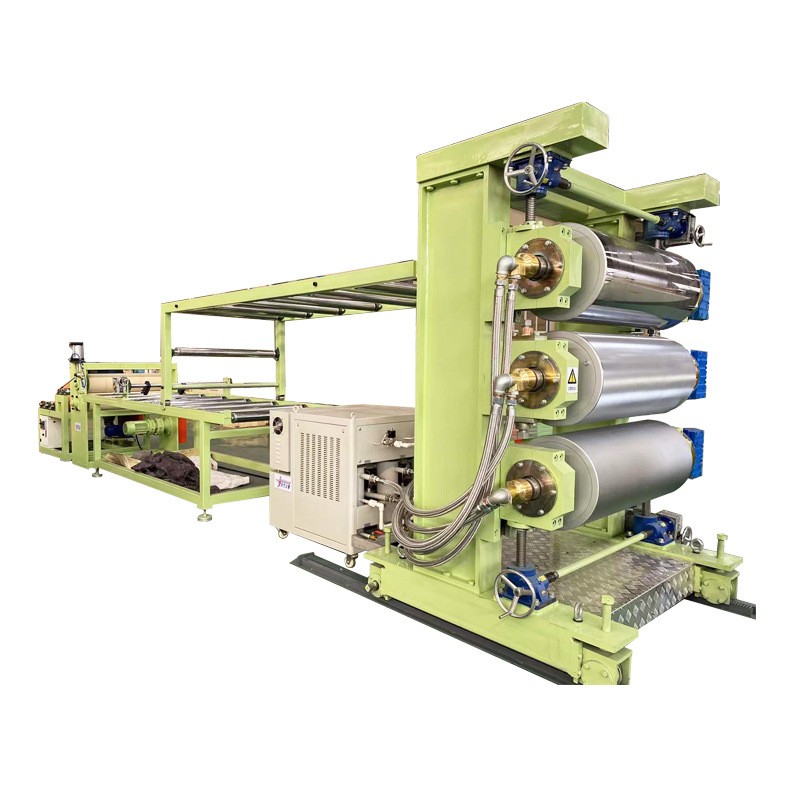

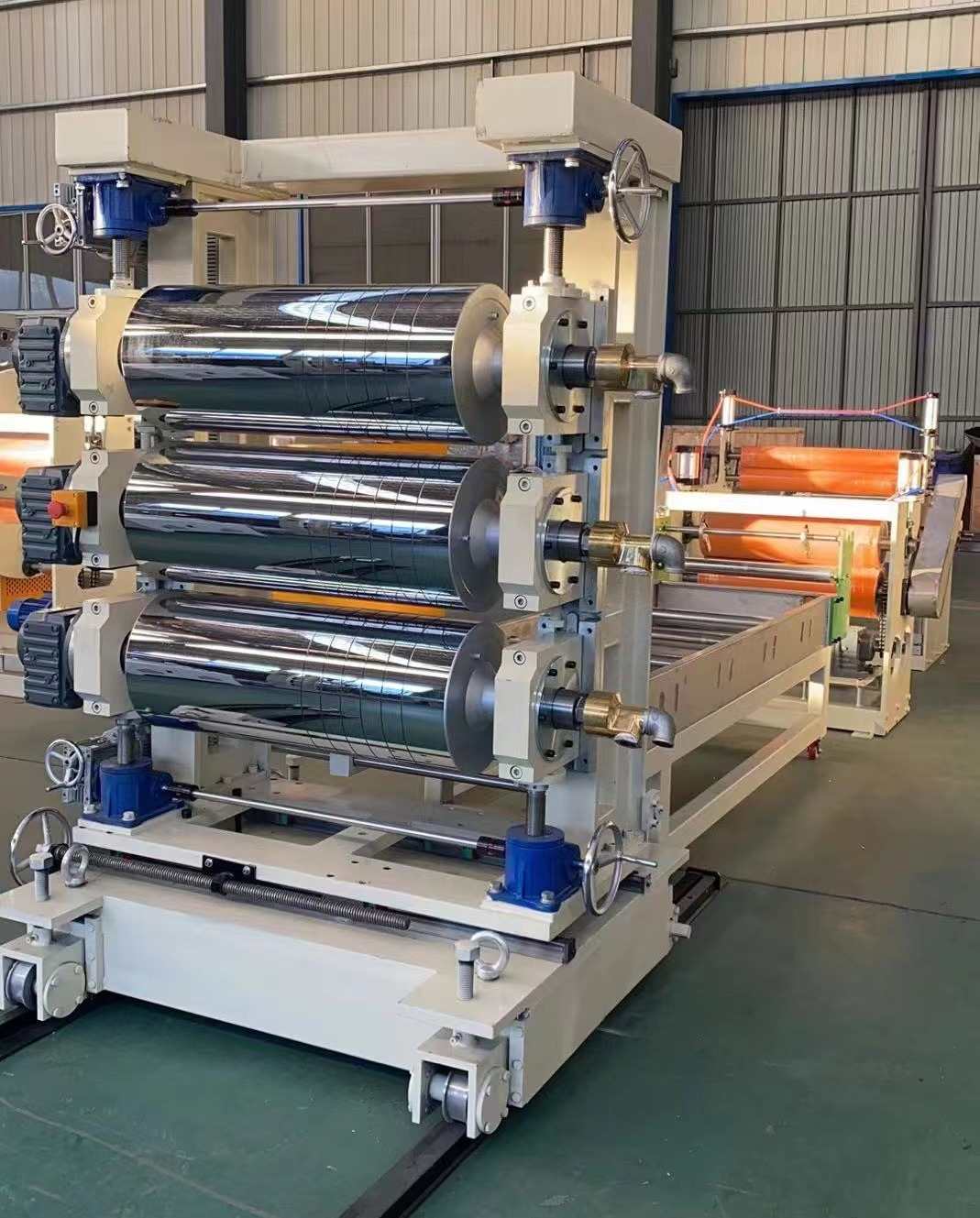

• Calendering Unit: Vertical or 45° inclined three-roller calender
• Auxiliary Units: Stainless steel cooling bracket (with width-adjustable trimming knife) + rubber roller puller + two-station air shaft winder

III. Industry Trend Insights: The Critical Leap from "Producible" to "Producible Well"

1. Surface Effect Refinement: One Machine Covers "Glossy/Matte/Striped"

In the past, producing glossy, matte, and striped door curtains required changing different embossing rollers or using dedicated equipment. Today's advanced three-roller calenders, through quick-changing roller surface coatings or auxiliary embossing rollers , can sequentially produce three different textures on the same platform. This enables small and medium-sized door curtain processors to accept "small-batch, multi-variety" orders — for example, in one batch: 20% transparent glossy (for supermarket freezers), 50% matte (for anti-glare workshops), and 30% red stripe (for hazardous area warning).

2. Broader Material Compatibility: Beyond Standard PVC

Although conventionally called "PVC soft door curtain equipment," new-generation machines, through optimized screw design and temperature control zoning, can now accommodate modified PVC (e.g., plasticizer content 35%-50%), low-temperature cold-resistant PVC , and even low-smoke halogen-free flame-retardant materials . This means a shorter potential payback period on equipment investment, expanding applications from ordinary curtains to anti-static curtains, anti-X-ray curtains (medical), and insect-repellent orange curtains .

3. Environmental and Energy Pressures Drive Equipment Upgrades

With the tightening of EU REACH regulations and domestic VOCs emission standards, traditional PVC processing tends to produce odors and fumes due to thermal decomposition. New equipment designs generally adopt:

• Fully enclosed forced feeding section (reduces powder leakage)
• Precise and stable water/oil temperature control (avoids material overheating)
• Machine body insulation + variable frequency energy-saving motors (15%-30% overall energy savings)

IV. Procurement Recommendations: How to Match Equipment to Your Needs?

For companies planning to enter or upgrade their soft door curtain production lines, the following three-step decision-making process is recommended:

1. Define Your Target Market:For supplying local hardware stores or agricultural markets, the 200-400mm Basic Economy type is sufficient.For supplying large cold chain logistics companies or for export, choose the Standard Multi-Function type, with special attention to "bubble-free and odor-free" process validation.
2. Confirm Product Thickness Range: High-frequency-use rapid-roll door curtains require 2-3mm thickness with good resilience — ensure the roller gap adjustment range reaches at least 5mm.
3. Evaluate Actual Changeover Time for Multi-Product Capability: Ask the manufacturer to demonstrate on-site the time required to switch from glossy to striped production. If it exceeds 20 minutes, it does not qualify as true "flexible production."

V. Recommended Equipment Supplier: Qingdao Eaststar Plastic Machinery Co., Ltd.

Among the many PVC soft door curtain equipment manufacturers, Qingdao Eaststar Plastic Machinery Co., Ltd. stands out as a representative player in the industry, leveraging its diversified product portfolio, global sales network, and corporate philosophy of "innovation, self-improvement, cooperation, and win-win."

1. Soft Door Curtain Equipment Product Capabilities

Eaststar offers a complete PVC transparent soft door curtain production line with technical parameters aligned with mainstream industry standards:

2. Product Matrix & Technical Depth

Eaststar is not a single-product door curtain equipment manufacturer. Its broad product portfolio offers customers "one-stop procurement" and "technical synergy" possibilities. The main product lines are shown in the following table:

The core value of this broad product line layout is that after purchasing door curtain equipment, if customers later expand into sheet, profile, or seedling tray fields, they need not search for a new supplier — Eaststar can provide continuous technical support and shared process experience.

3. Global Sales Network & Market Performance

Eaststar's products cover all of China and have been successfully exported to Southeast Asia, the Middle East, South America, and other countries and regions. Market performance by region is as follows:

4. Comprehensive Value of Choosing Eaststar

For companies evaluating PVC soft door curtain equipment procurement, Eaststar offers not just a single machine, but a technology ecosystem that grows with your business :

• Short-term value: High cost-performance door curtain production line supporting glossy/matte/striped one-machine changeover for rapid startup.
• Medium-term value: Leveraging Eaststar's technical know-how in sheet, profile, and other fields, customers receive process debugging advice and formulation optimization support.
• Long-term value: As businesses extend into other plastic products, Eaststar's broad product line serves as an "internal supplier," reducing communication and technical integration costs.

Contact & Inquiries:Qingdao Eaststar Plastic Machinery Co., Ltd. welcomes inquiries from domestic and international customers. For detailed technical proposals, quotations, or factory visits and machine trials for the PVC soft door curtain production line, please send an inquiry through official channels. The Eaststar team, adhering to the philosophy of "integrity-based, quality refined," is committed to helping customers create profits and business opportunities.
