TPE Single-screw Non-woven Composite Co-extrusion Waterstop Production Equipment

TPE Single-screw Non-woven Composite Co-extrusion Waterstop Production Equipment is manufactured by Chinese manufacturer Oriental Star.

Equipment List

1. SJ-55/30 single-screw extruder (1 unit)

2. Upper and lower unwinding devices (2 units each)

3. Die and screen changer (1 set)

4. 500mm L three-roll calender (1 unit)

5. Roller temperature control system (1 unit)

6. Cooling bracket and trimming system (1 set)

7. Haul-off (1 unit)

8. Winder (1 unit)

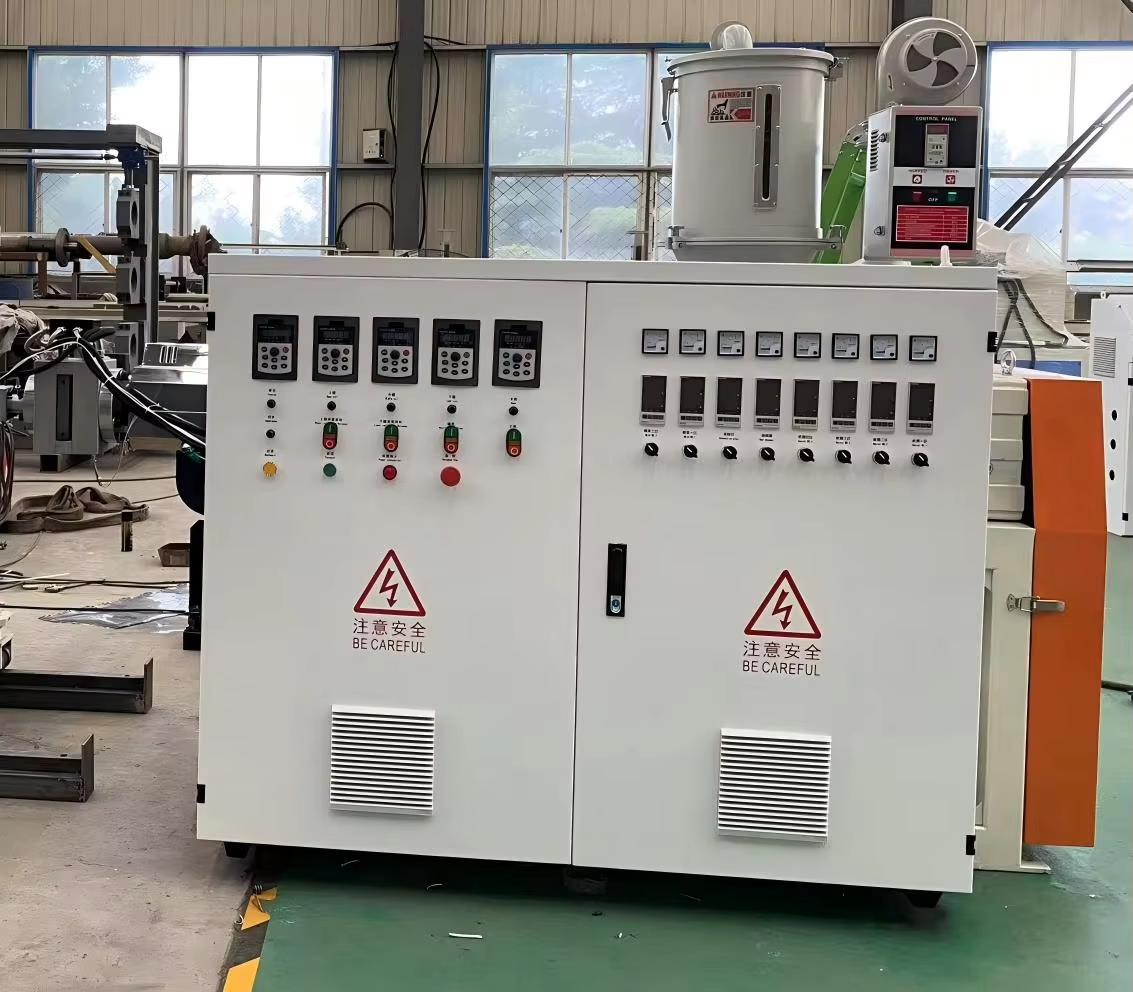

9. Complete electrical control system (1 set)

Screw, Barrel, and Temperature Control

Screw Material: 38CrMoAL, Nitrided Steel

Screw Hardness: HV950

Barrel Material: Wear-Resistant Barrel Material, Nitrided Steel

Barrel Hardness: HV1050

Screw Diameter: 55mm

L/D Ratio: 30/1

Main Motor Power: 15kW

Main Motor Heating Power: 12kW

Barrel Heating: Cast Aluminum or Ceramic

Temperature Control: Automatic, Fan-Forced Cooling

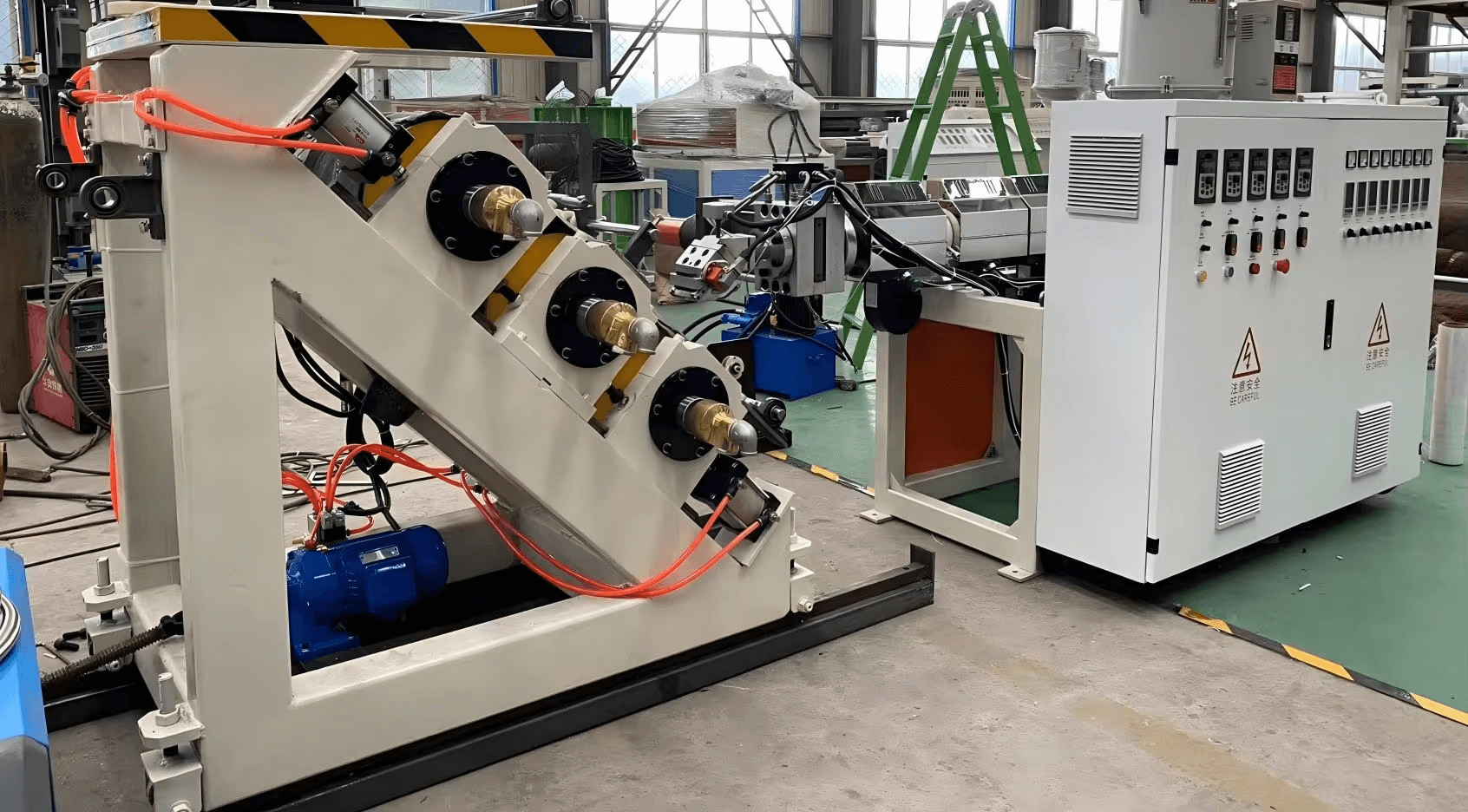

Three-roll calender

Roller diameter: 300mm

Roller effective width: 400mm

Roller material: 45 steel

Roller structure: Qingdao Roller Manufacturing or Xuzhou Saite Machinery's special multi-channel design

Coaxiality: ≤0.005mm

Roller surface finish: Ra ≤0.016µm

Roller surface hardness: HRC58-62

Chromium plating thickness: 0.08mm

Drive reduction gearbox: Redson or Congli

Drive power: 3 x 1.5kW

Speed control: INVT inverter

Three-roller gap adjustment: Cylinder adjustment, safety emergency stop switch, synchronous control system

Three-roller configuration: 45° tilt

Three-roller wall panel: Integral steel plate welding

Three-roller spherical roller bearings: Harbin Bearing or Wafangdian Bearing

Swivel joint: Sino-foreign joint venture

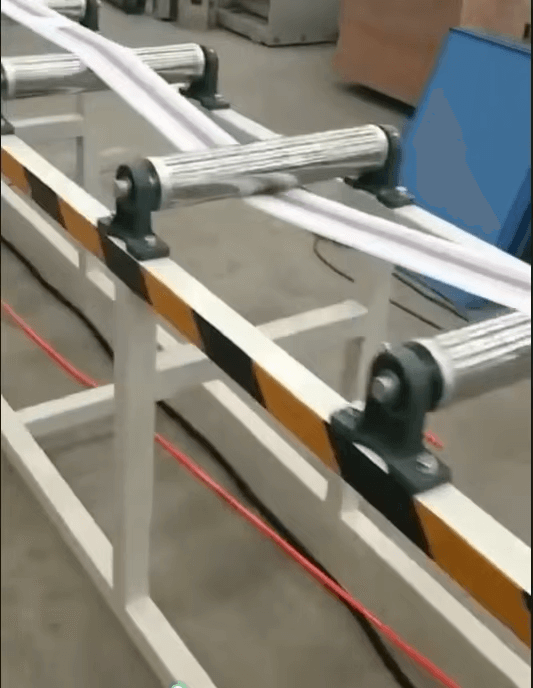

Cooling Bracket

Cooling Bracket

Bracket Length: 4 meters

Idler Rollers (Non-Powered): High-Quality Stainless Steel

Specifications: Φ75 x 400 mm

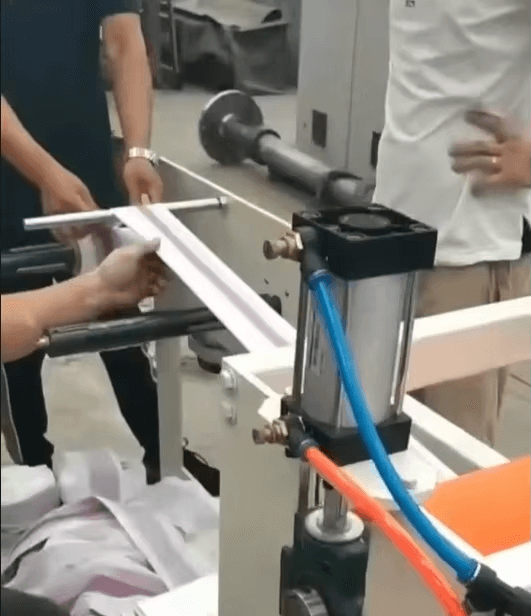

Winder

Transmission torque

Dual station form

Control automatic fixed length counting

Roll diameter 50mm

Paper tube inner core specification 2-inch outer jacket

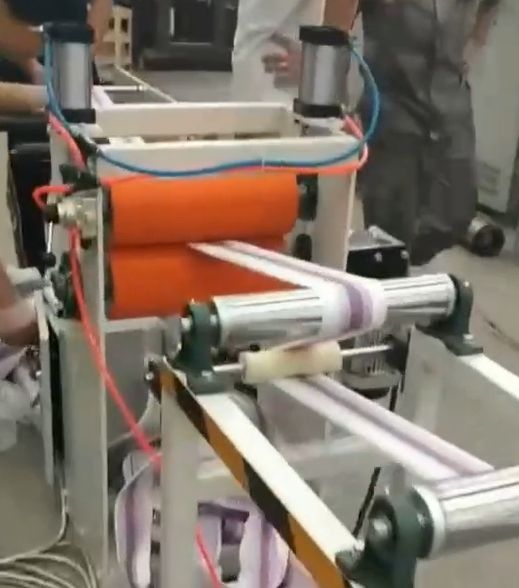

Equipment Display

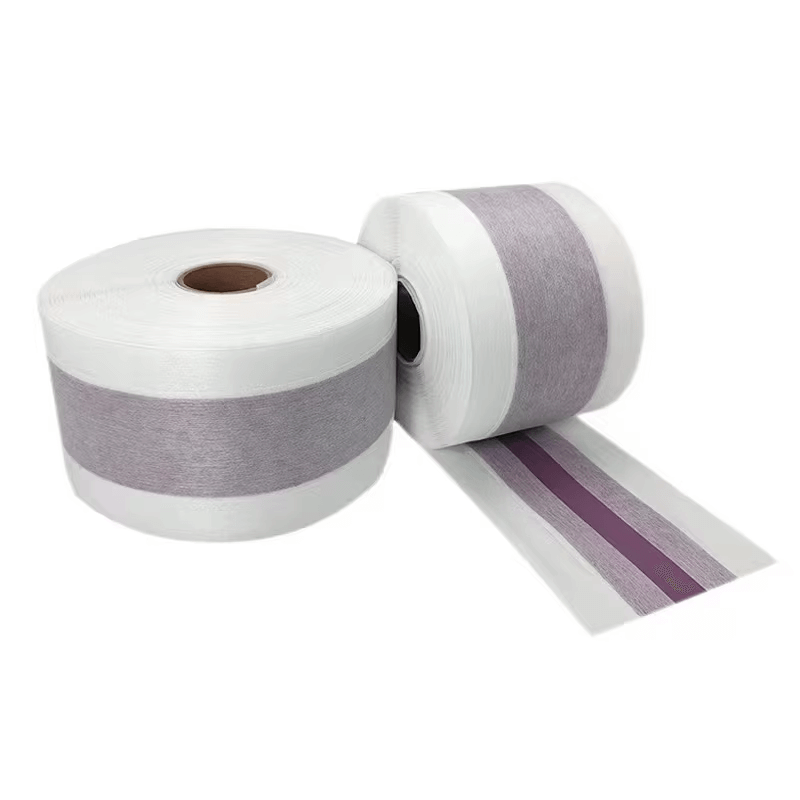

成品展示
