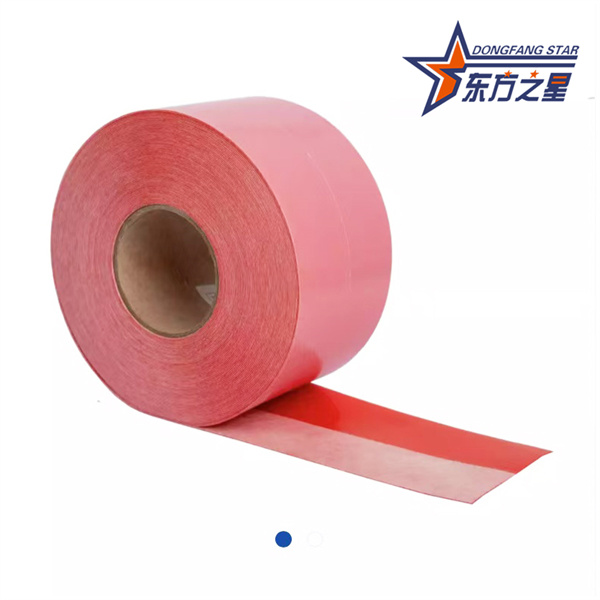

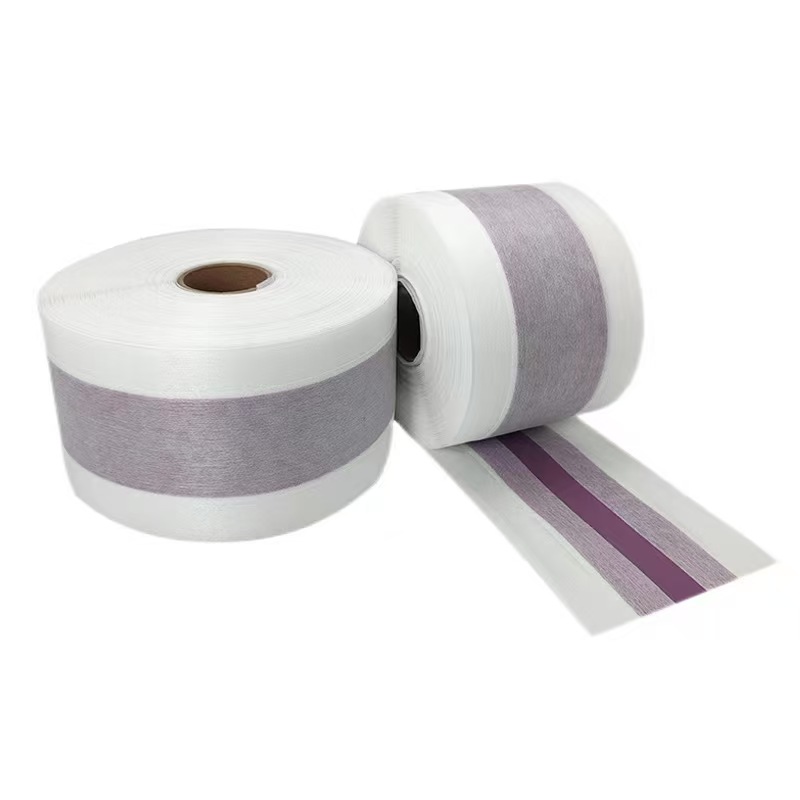

Self-adhesive TPE joint tape coating line

Looking for reliable TPE/TPO Waterstop Production Line? Our Self-adhesive TPE joint tape coating line delivers high-precision extrusion for construction sealing strips. This automatic waterstop machinery supports continuous manufacturing of TPE/TPO-based profiles with excellent waterproofness and flexibility.

TPE/TPO Waterstop is used in bathrooms, basements, tunnels, culverts, and other projects. It features corrosion resistance, low-temperature resistance, and high tensile strength, extending its service life by 3-5 times that of standard rubber waterstops. Compared to traditional rubber waterstops, TPE/TPO/TPO waterstops utilize significantly different processing techniques and materials. Instead of the traditional vulcanization process, TPE/TPO/TPO waterstops utilize high-temperature, single-step extrusion composite molding technology. Made entirely of natural raw materials, they exhibit excellent elasticity and aging resistance. They are primarily used for waterproofing buildings, tunnels, culverts, and other projects.

The Self-adhesive TPE joint tape coating line includes Single-screw extruder，Upper and lower unwinding devices，Mold and screen changer，Three-roll calender，Roller temperature control system，Cooling bracket, trimming system，Haul-off unit，Winding unit，Complete electrical control system. Our equipment features energy-efficient heating, PLC control, and easy maintenance, reducing operational costs for long-term production.

We offer end-to-end solutions from material formulation to profile design. Our technical team provides on-site installation and training to ensure smooth production startup. Contact us for a customized Self-adhesive TPE joint tape coating line quotation and technical proposal!

Product Overview

1. Operating Conditions: ① Power Supply: 380V/50Hz 3P+N+E

② Cooling Water: Temperature below 30°C, Pressure 2-4 kg/cm²G, Water Flow 40 m³/hr, Water Consumption 1.5 m³/hr

③ Compressed Air: Pressure 0.6-0.8 MPa, Air Consumption 1.5 m³/hr

④ Installation Location: Indoor (Temperature 0°C-40°C, Relative Humidity 20%-80%)

2. Materials: TPE granules + non-woven fabric

3. Product Specifications: Width: 70mm

Thickness: 0.5-2mm

4. Designed Line Speed: 1-8 m/min

5. Extrusion Output: 20-40 kg/hr

序号  名称数量1．SJ-55/30单螺杆挤出机1台2．上、下工位放卷装置各2组3．模具及换网装置1套4．L=500MM三辊压光机1台5．辊温控制系统1台6．冷却托架、切边1套7．牵引机1台8．收卷机1台序号  名称数量1．SJ-55/30单螺杆挤出机1台2．上、下工位放卷装置各2组3．模具及换网装置1套4．L=500MM三辊压光机1台5．辊温控制系统1台6．冷却托架、切边1套7．牵引机1台8．收卷机1台序号  名称数量1．SJ-55/30单螺杆挤出机1台2．上、下工位放卷装置各2组3．模具及换网装置1套4．L=500MM三辊压光机1台5．辊温控制系统1台6．冷却托架、切边1套7．牵引机1台8．收卷机1台

Equipment List

1. SJ-55/30 single-screw extruder (1 unit)

2. Upper and lower unwinding devices (2 units each)

3. Die and screen changer (1 set)

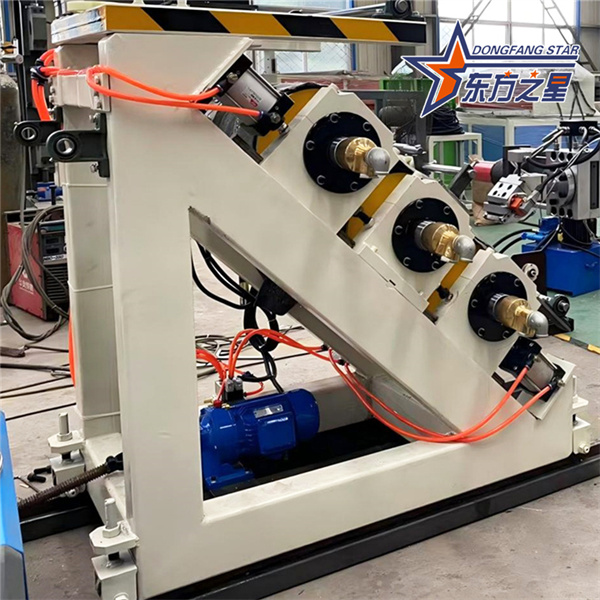

4. 500mm L three-roll calender (1 unit)

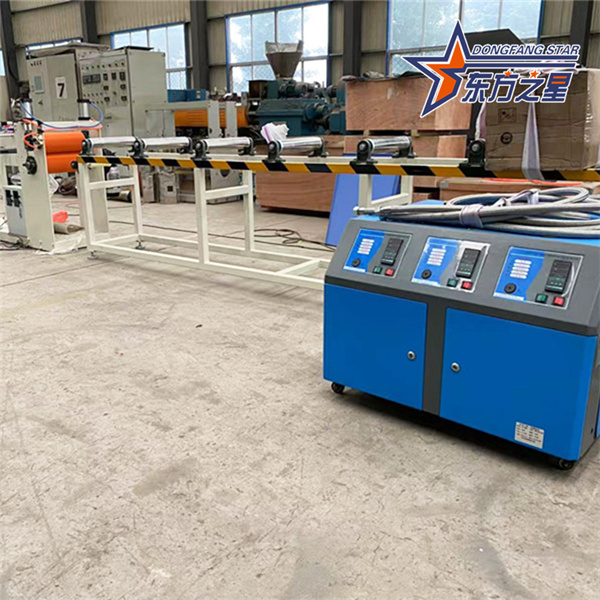

5. Roller temperature control system (1 unit)

6. Cooling bracket and trimming system (1 set)

7. Haul-off (1 unit)

8. Winder (1 unit)

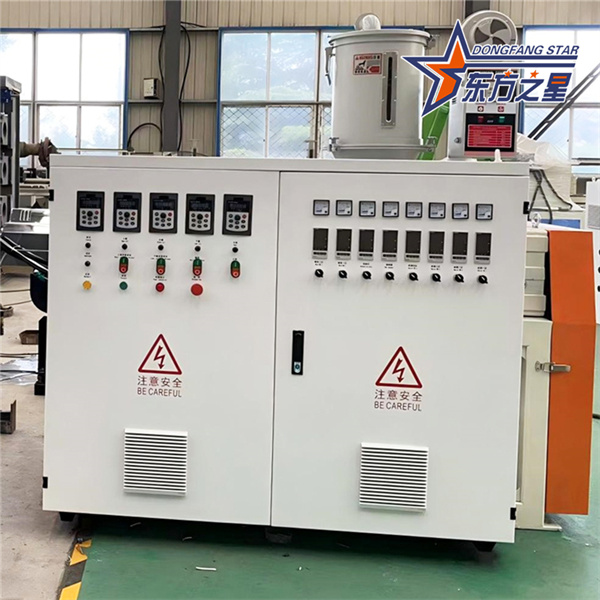

9. Complete electrical control system (1 set)

Key Selling Points

1. Full-Automatic Control – PLC system ensures stable operation and minimal manual intervention.

2. High Output Efficiency – Continuous extrusion process for large-scale production.

3. Energy-Saving Design – Optimized heating and drive systems reduce power consumption.

4. Customizable Profiles – Support various TPE/TPO waterstop designs (e.g., center-bulb, flat type).

5. Turnkey Service – Includes formula guidance, installation, and training support.

Customer Concerns

· Equipment stability and durability

· Production capacity (e.g., meters/hour)

· Accuracy of profile dimensions

· Energy consumption and operating cost

· After-sales service and technical support
