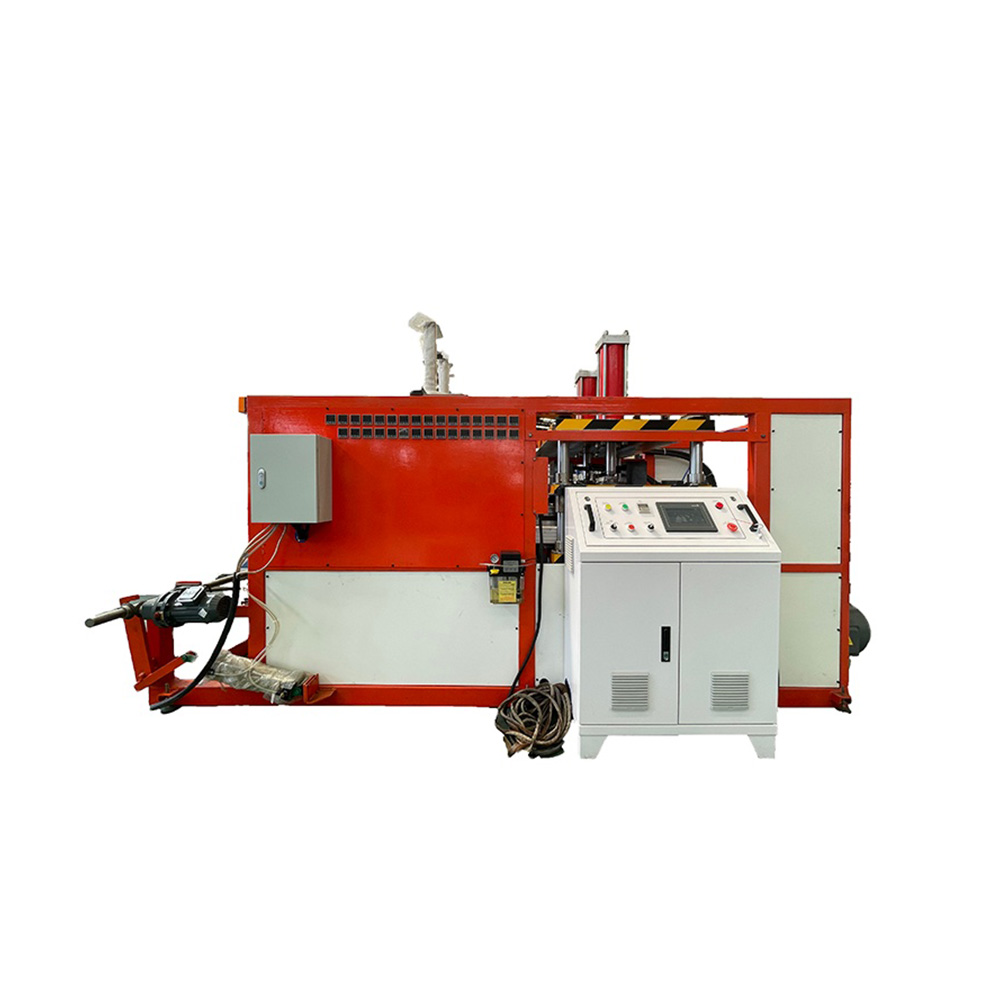

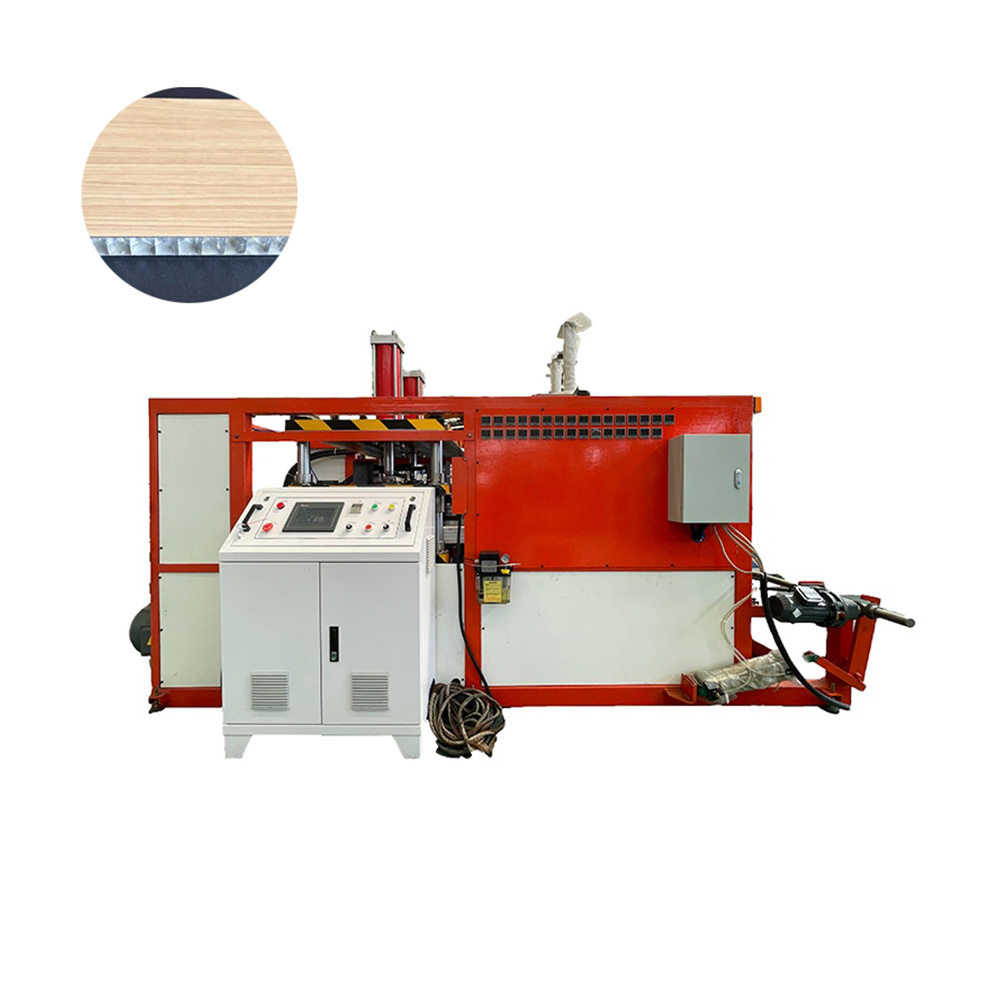

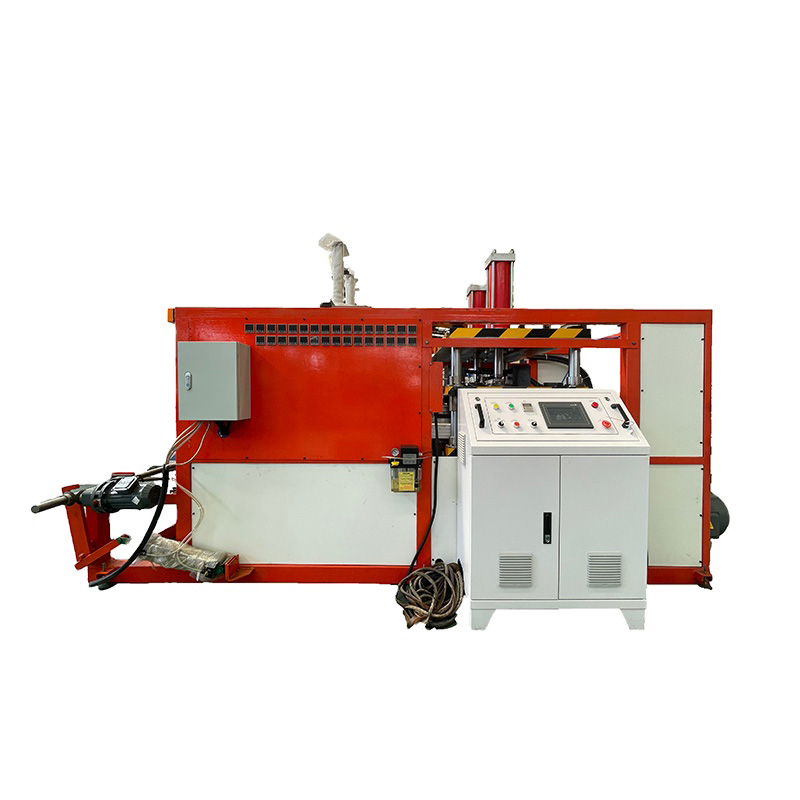

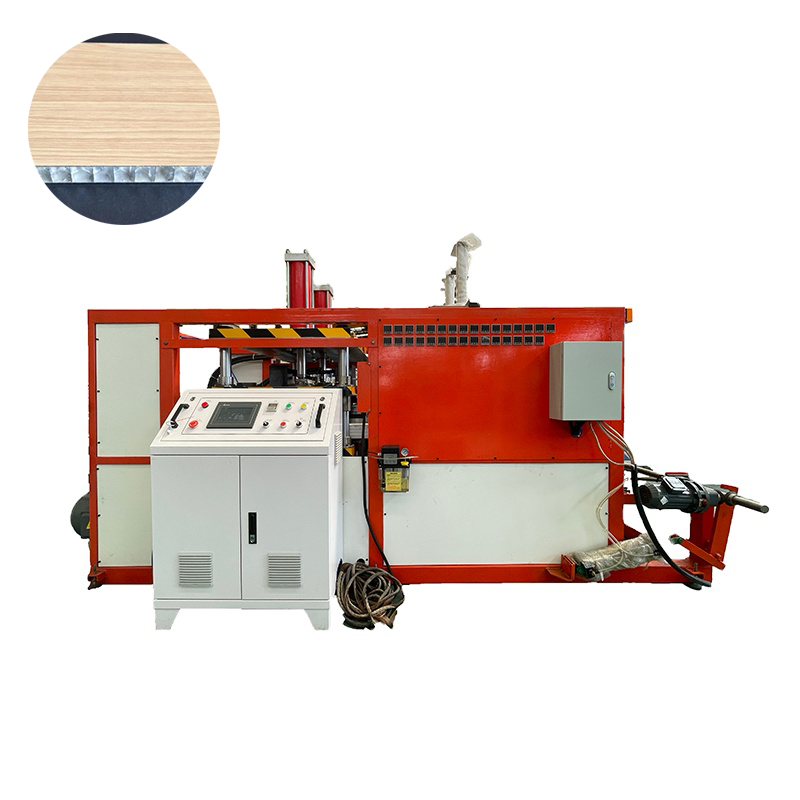

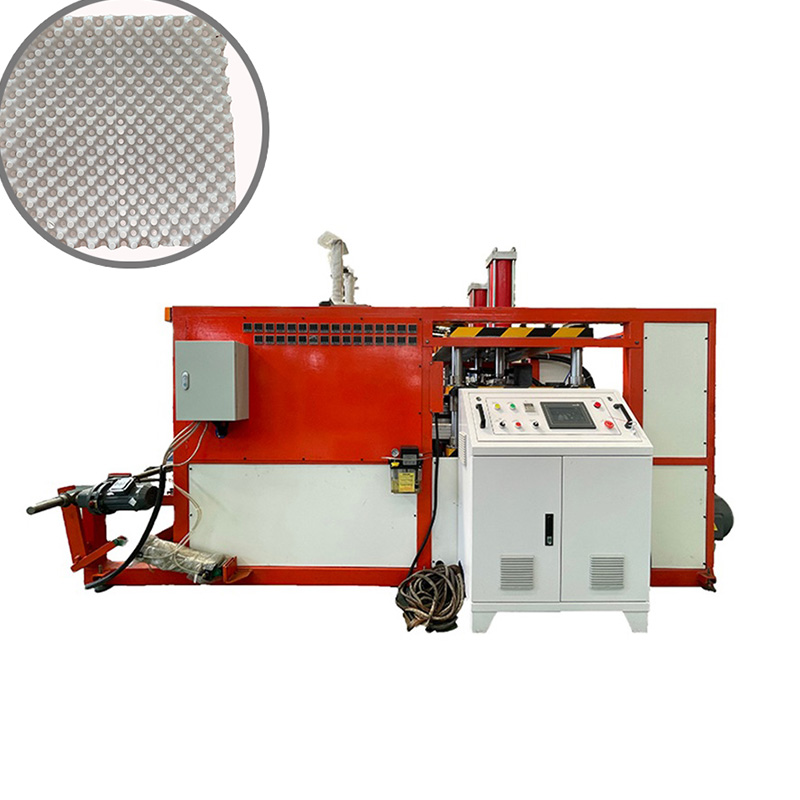

PVC Honeycomb Board Production Line

Eaststar, a renowned manufacturer based in China,PVC Honeycomb Board Production Line. Our state-of-the-art factory and commitment to excellence have positioned Eaststar as a trusted supplier in the plastic industry.

Model:PHBL-1220MM

Send Inquiry

Product Description

PVC Honeycomb Board Production Line made in china

PVC Honeycomb Board Production Line Introduction:

1. This machine is designed and manufactured based on the working principle of hot-pressing equipment. The technological process includes unwinding, feeding, heating, compression molding and slitting. All platens are machined by machining centers to ensure dimensional accuracy of all hole positions. All vertical columns are quenched and hard chrome-plated to guarantee excellent sliding performance and wear resistance. The machine control system supports manual and automatic modes. All movements can be operated individually under manual mode.

2: The feeding motor is servo-driven with a power of 2 kW.

3:The unwinding system adopts a 0.37 kW reduction motor matched with a reducer to ensure stable unwinding speed.

4: Built-in stainless steel heating system: fast temperature rise and low power consumption. The temperature can be freely adjusted according to different material thicknesses.

5: All mechanical parts are manufactured and processed in-house. The electrical automatic control system adopts PLC control.

6: This machine adopts hydraulic balanced distribution design for improved overall balance. It eliminates the uneven height deviation between left and right sides during production and extends the service life of molds.

Introduction of the equipment subject:

1	Forming Area	1.22m × 0.55m
2	Forming Width Range	1220mm, available for slitting into various sizes
3	Applicable Sheet Thickness	0.4–0.5mm
4	Product Height	Standard market sizes 4/5/10/14mm
5	production efficiency	5–6 seconds per cycle (subject to actual forming effect)
6	Mold Type	Custom mold manufactured according to customer samples
7	Demolding Method	Demolding Method
8	Heating Mode	Independent temperature control for each zone, stainless steel heating tubes
9	Total Heating Power	60 kW
10	Temperature controladjustsystem	Solid-state temperature controller to maintain constant temperature
11	Hydraulic Pump Motor Power	7.5KW
12	Cooling system Specification	Circulating water inside aluminum alloy beams to ensure effective beam cooling
13	Max Rated Power of Complete Machine	70 kW
14	Actual Power Consumption of Complete Machine	50KW
15	Power supply	380V / 50–60Hz (3-phase 4-wire)
16	Pneumatic System Working Pressure	0.4-0.8MPA
17	Overall size of the whole machine	L 5m × W 2.1m × H 1.7m
18	Total weight of the whole machine	Approx. 3980 KG

PVC Honeycomb Board application

This isn't just a "drainage board" machine. By adjusting the roller and lamination units, you can serve multiple high-growth markets:

Automotive & RVs: Interior wall linings, floor supports, and trunk partitions.
Logistics: The core material for "Sleeve Packs" (collapsible pallet boxes) that are revolutionizing global shipping.
Construction: High-end basement waterproofing and green roof drainage systems.

Advantages:

Traditional solid sheets are heavy and expensive. Traditional honeycomb panels often involve complex gluing processes. Our equipment produces a unique Dimpled Core Structure that provides:

Exceptional Strength-to-Weight Ratio: The 3D dimple structure offers high compressive strength while using 30-50% less raw material.
Water & Chemical Resistance: Unlike cardboard or wood, PVC is 100% waterproof, making it perfect for vehicle linings and construction.
Recyclability: A circular economy solution that appeals to modern global buyers.
